WI-M-10-10-9

Active

Mueller Electric Co

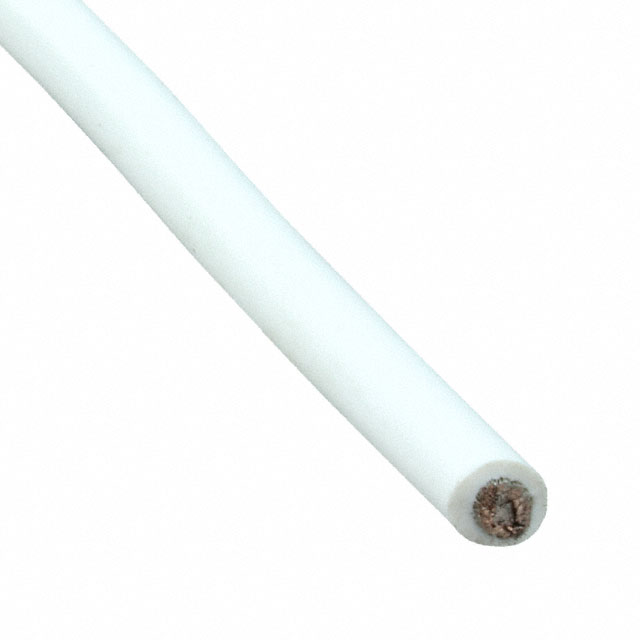

TEST LEAD WIRE, 10AWG, WHITE, 3.05M ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Mueller Electric Co

TEST LEAD WIRE, 10AWG, WHITE, 3.05M ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	WI-M-10-10-9

Conductor Material	Copper, Tinned
Jacket (Insulation) Diameter [diameter]	5.99 mm
Jacket (Insulation) Diameter [diameter]	0.236 in
Length	10 ft
Length	3.05 m
Voltage	1100 V
Wire Gauge	10 AWG

Part	Length	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Wire Gauge	Jacket Color	Voltage	Length [x]	Length
Mueller Electric Co WI-M-10-50-0	15.24 m	50 ft	5.99 mm	0.236 in	Copper Tinned	10 AWG	Black	1100 V
Mueller Electric Co WI-M-10-100-2		100 ft	5.99 mm	0.236 in	Copper Tinned	10 AWG	Red	1100 V	30.5 m
Mueller Electric Co WI-M-10-10-2	3.05 m		5.99 mm	0.236 in	Copper Tinned	10 AWG	Red	1100 V		10 ft
Mueller Electric Co WI-M-10-10-4	3.05 m		5.99 mm	0.236 in	Copper Tinned	10 AWG	Yellow	1100 V		10 ft
Mueller Electric Co WI-M-10-25-5		25 ft	5.99 mm	0.236 in	Copper Tinned	10 AWG	Green	1100 V	7.62 m
Mueller Electric Co WI-M-10-10-9	3.05 m		5.99 mm	0.236 in	Copper Tinned	10 AWG		1100 V		10 ft
Mueller Electric Co WI-M-10-10-5	3.05 m		5.99 mm	0.236 in	Copper Tinned	10 AWG	Green	1100 V		10 ft
Mueller Electric Co WI-M-10-10-6	3.05 m		5.99 mm	0.236 in	Copper Tinned	10 AWG	Blue	1100 V		10 ft
Mueller Electric Co WI-M-10-25-2		25 ft	5.99 mm	0.236 in	Copper Tinned	10 AWG	Red	1100 V	7.62 m
Mueller Electric Co WI-M-10-50-2	15.24 m	50 ft	5.99 mm	0.236 in	Copper Tinned	10 AWG	Red	1100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 AWG Test Lead Wire White 1100V 10.00' (3.05m)
