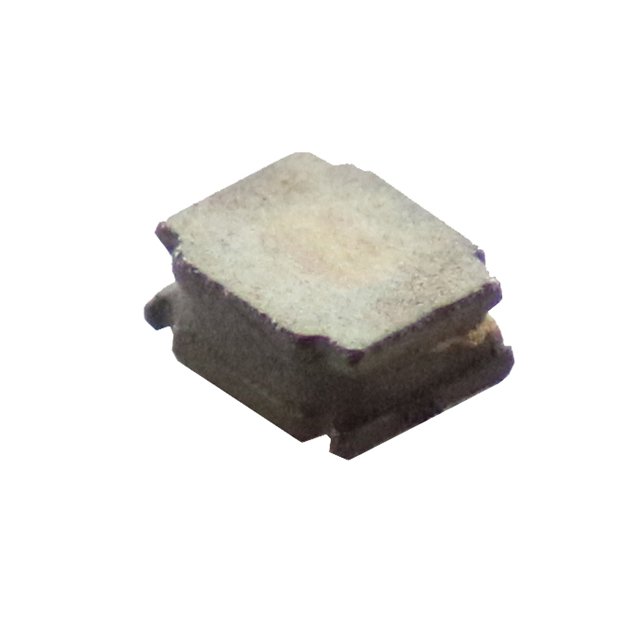

MPL-SE2512-150

Active

MONOLITHIC POWER SYSTEMS (MPS)

FIXED IND 15UH 850MA 620MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPL-SE2512-150

Active

MONOLITHIC POWER SYSTEMS (MPS)

FIXED IND 15UH 850MA 620MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPL-SE2512-150

Current - Saturation (Isat)	900 mA
Current Rating (Amps)	0.85 A
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Inductance	15 µH
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard, 2 Lead
Shielding	Shielded
Size / Dimension [x]	0.098 "
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in

MPL-SE2512 Series

Part	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Current Rating (Amps)	Inductance	Mounting Type	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Package / Case	DC Resistance (DCR) [Max]
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE2512-4R7	1.9 A	125 °C	-40 °C	100 kHz	1.6 A	4.7 ÁH	Surface Mount	165 mOhm	1.2 mm	0.047 in	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Nonstandard 2 Lead
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE2512-150	900 mA	125 °C	-40 °C	100 kHz	0.85 A	15 µH	Surface Mount		1.2 mm	0.047 in	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Nonstandard 2 Lead
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE2512-1R0		125 °C	-40 °C	100 kHz	3.4 A	1 µH	Surface Mount	35 mOhm	1.2 mm	0.047 in	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Nonstandard 2 Lead
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE2512-R68	5 A	125 °C	-40 °C	100 kHz	3.9 A	0.68 µH	Surface Mount	28 mOhm	1.2 mm	0.047 in	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Nonstandard 2 Lead
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE2512-R47	6.5 A	125 °C	-40 °C	100 kHz	4.5 A	470 nH	Surface Mount	20 mOhm	1.2 mm	0.047 in	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Nonstandard 2 Lead
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE2512-100	1.3 A	125 °C	-40 °C	100 kHz	1.1 A	10 µH	Surface Mount	410 mOhm	1.2 mm	0.047 in	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Nonstandard 2 Lead
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE2512-2R2	2.7 A	125 °C	-40 °C	100 kHz	2.5 A	2.2 µH	Surface Mount		1.2 mm	0.047 in	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Nonstandard 2 Lead
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE2512-1R5	3.2 A	125 °C	-40 °C	100 kHz	2.9 A	1.5 µH	Surface Mount	50 mOhm	1.2 mm	0.047 in	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Nonstandard 2 Lead
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE2512-220	800 mA	125 °C	-40 °C	100 kHz	700 mA	22 µH	Surface Mount		1.2 mm	0.047 in	0.098 "	2 mm	2.5 mm	0.079 in	Shielded	Nonstandard 2 Lead	1.05 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.46
		10	$ 0.39
		25	$ 0.36
		50	$ 0.33
		100	$ 0.29
		250	$ 0.28
		500	$ 0.24
		1000	$ 0.21
	Digi-Reel®	1	$ 0.46
		10	$ 0.39
		25	$ 0.36
		50	$ 0.33
		100	$ 0.29
		250	$ 0.28
		500	$ 0.24
		1000	$ 0.21
	Tape & Reel (TR)	2000	$ 0.21

Description

General part information

MPL-SE2512 Series

15 µH Shielded Inductor 850 mA 620mOhm Nonstandard, 2 Lead
