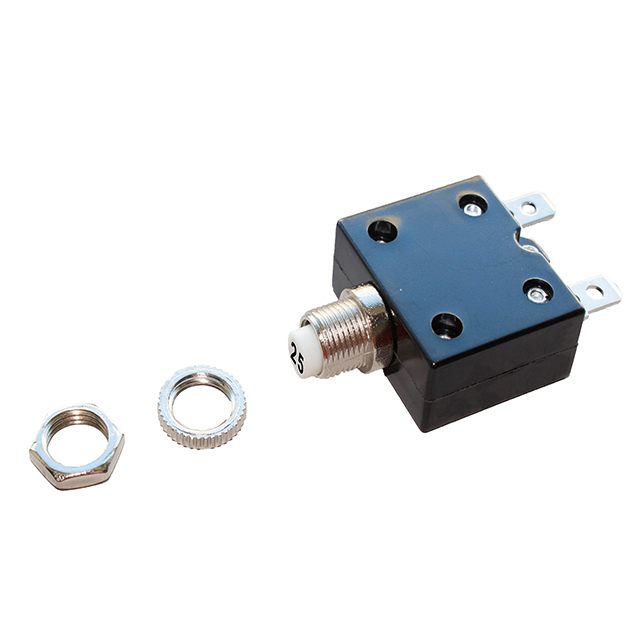

CBW58-HS-25A-5C

Active

OptiFuse

FUSE: THERMAL; 25A; IMAX: 1KA; 125V,250V; 32VDC,50VDC; 35X14.4X31MM

Search across all available documentation for this part.

Active

OptiFuse

FUSE: THERMAL; 25A; IMAX: 1KA; 125V,250V; 32VDC,50VDC; 35X14.4X31MM

Technical Specifications

Parameters and characteristics for this part

Part	Breaker Type	Approval Agency	Voltage Rating - DC	Number of Poles	Actuator Type	Illumination	Current Rating (Amps)	Voltage Rating - AC
OptiFuse CBW58-EL-50A	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	50 A	250 V
OptiFuse CBW58-HL-25A	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	25 A	250 V
OptiFuse CBW58-HL4-30A-5C	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	30 A	250 V
OptiFuse CBW58-HL4-15A-5C	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	15 A	250 V
OptiFuse CBW58-HS-15A-5C	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	15 A	250 V
OptiFuse CBW58-HF-5A-5CBV	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	5 A	250 V
OptiFuse CBW58-HB-5A	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	5 A	250 V
OptiFuse CBW58-HF-8A-5CBV	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	8 A	250 V
OptiFuse CBW58-HL4-10A-5C	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	10 A	250 V
OptiFuse CBW58-HS-25A-5C	Thermal	cURus IP 40 SAE J1171 UL 1077 UL 1500	50 VDC	1	Push to Reset	None	25 A	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.05
TME	N/A	100	$ 20.01
		200	$ 17.87

General part information

Circuit Breaker Thermal 25A 250 V AC 50 V DC Push to Reset Panel Mount
