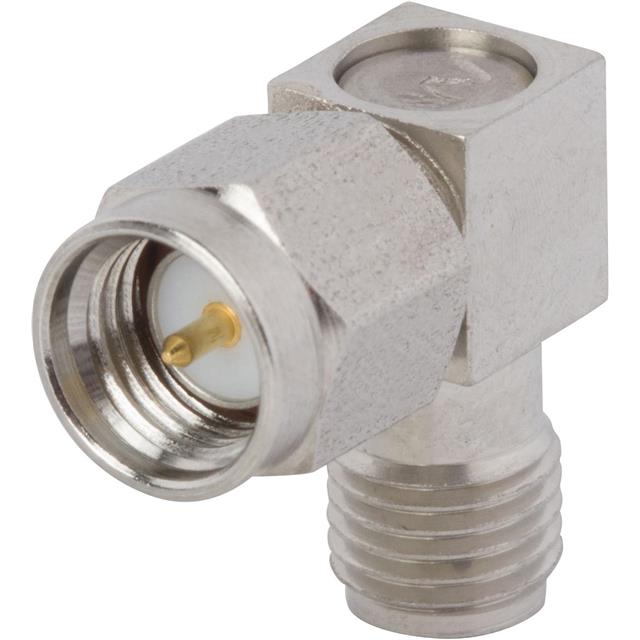

SF2994-6001

Active

Amphenol SV Microwave

CONN ADAPT JACK-PLUG SMA 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN ADAPT JACK-PLUG SMA 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	SF2994-6001

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Style	Right Angle

Part	Style	Dielectric Material	Center Contact Plating	Conversion Type	Convert From (Adapter End)	Frequency - Max [Max]	Center Contact Material	Impedance	Mating Cycles	Adapter Series	Adapter Type	Body Material	Mounting Type	Convert To (Adapter End)
Amphenol SV Microwave SF2994-6001	Right Angle	Polytetrafluoroethylene (PTFE)	Gold	Same Series	Female Socket SMA Jack	12.4 GHz	Beryllium Copper Brass	50 Ohms	500	SMA to SMA	Plug to Jack	Stainless Steel	Free Hanging (In-Line) Right Angle	Male Pin SMA Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
