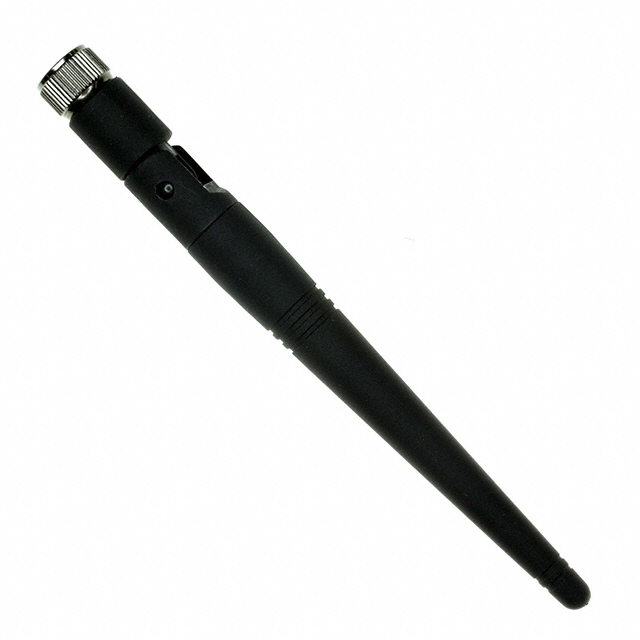

ANT-24G-WPJ-SMA
ActiveRF SOLUTIONS
ANTENNA, WHIP, HELICAL, WIRELESS LAN, OMNIDIRECTIONAL, VERTICAL, 2.4GHZ, 90° JOINT, SMA MALE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
ANT-24G-WPJ-SMA
ActiveRF SOLUTIONS
ANTENNA, WHIP, HELICAL, WIRELESS LAN, OMNIDIRECTIONAL, VERTICAL, 2.4GHZ, 90° JOINT, SMA MALE
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-24G-WPJ-SMA |
|---|---|
| Antenna Type | Tilt, Whip |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 2.15 dBi |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ANT-24 Series
The ANT-24G-WHJ-SMA is a mini Helical Antenna, designed and manufactured for operation specifically with low power short range telemetry systems.
