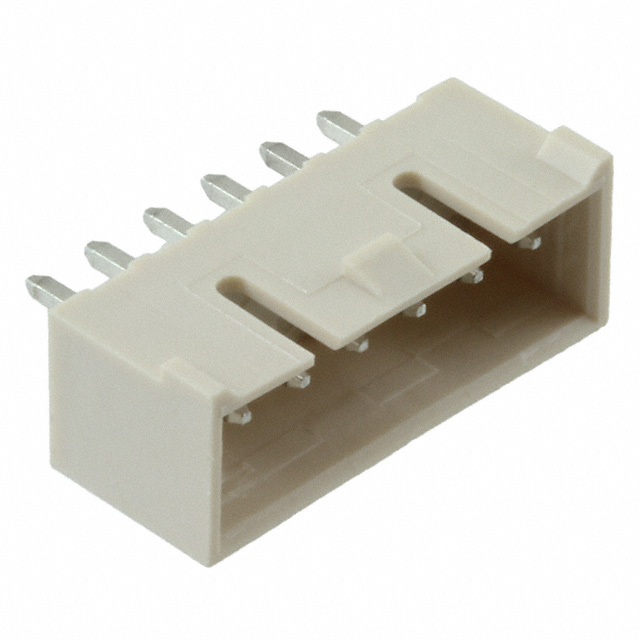

0353120660

Active

Molex

CONN HEADER VERT 6POS 2.5MM

Search across all available documentation for this part.

Active

Molex

CONN HEADER VERT 6POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	0353120660

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Insulation Material	Shrouding	Number of Positions	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Type	Mounting Type	Number of Rows	Contact Shape	Material Flammability Rating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Material	Connector Type	Style	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]
Molex 0353120760	Polyamide (PA66) Nylon 6/6 Glass Filled	Shrouded - 4 Wall	7	2.5 mm	0.098 in	Locking Ramp	Male Pin	Through Hole	1	Square	UL94 V-0	Natural	200 µin	5.08 µm	All	Brass	Header	Board to Cable/Wire	0.134 in	3.4 mm	Tin	Solder	5.08 µm	200 µin	7 mm	0.276 in
Molex 0353120960
Molex 0353120660	Polyamide (PA66) Nylon 6/6 Glass Filled	Shrouded - 4 Wall	6	2.5 mm	0.098 in	Locking Ramp	Male Pin	Through Hole	1	Square	UL94 V-0	Natural	200 µin	5.08 µm	All	Brass	Header	Board to Cable/Wire	0.134 in	3.4 mm	Tin	Solder	5.08 µm	200 µin	7 mm	0.276 in
Molex 0353121160	Polyamide (PA66) Nylon 6/6 Glass Filled	Shrouded - 4 Wall	11	2.5 mm	0.098 in	Locking Ramp	Male Pin	Through Hole	1	Square	UL94 V-0	Natural	200 µin	5.08 µm	All	Brass	Header	Board to Cable/Wire	0.134 in	3.4 mm	Tin	Solder	5.08 µm	200 µin	7 mm	0.276 in
Molex 0353121360
Molex 0353120260	Polyamide (PA66) Nylon 6/6 Glass Filled	Shrouded - 4 Wall	2	2.5 mm	0.098 in	Locking Ramp	Male Pin	Through Hole	1	Square	UL94 V-0	Natural	200 µin	5.08 µm	All	Brass	Header	Board to Cable/Wire	0.134 in	3.4 mm	Tin	Solder	5.08 µm	200 µin	7 mm	0.276 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 6 position 0.098" (2.50mm)
