ADP-RPSF-NM

Active

TE Connectivity Linx

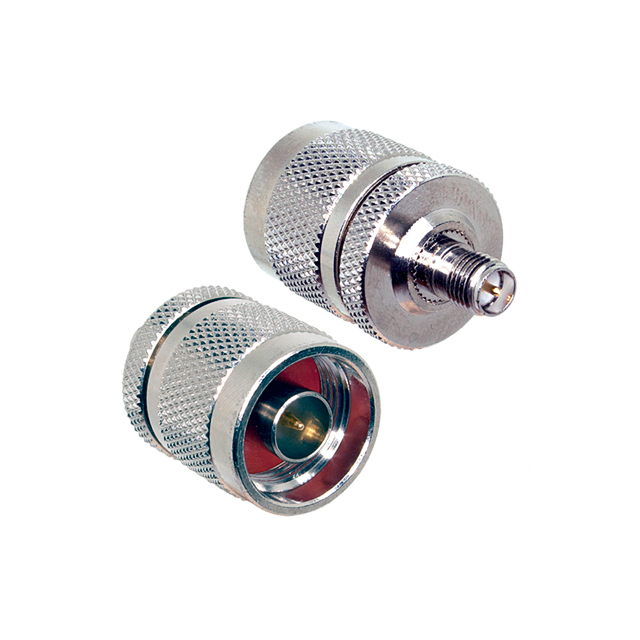

RP-SMA JACK (MALE PIN) TO N PLUG

Search across all available documentation for this part.

Active

TE Connectivity Linx

RP-SMA JACK (MALE PIN) TO N PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	ADP-RPSF-NM

Adapter Series	RP-SMA to N
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	RP-SMA Jack, Male Pin
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Body Finish	Style	Impedance	Center Contact Plating	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Body Material	Conversion Type	Convert To (Adapter End)	Adapter Series	Frequency - Max [Max]	Adapter Type	Dielectric Material	Convert From (Adapter End)	Center Gender	Mounting Type
TE Connectivity Linx ADP-RPSF-NM	Nickel	Straight	50 Ohms	Gold	500	-55 °C	125 °C	Beryllium Copper	Brass	Between Series	Male Pin N Plug	RP-SMA to N	11 GHz	Plug to Jack	Polytetrafluoroethylene (PTFE)	RP-SMA Jack Male Pin	Male to Male	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector RP-SMA Jack, Male Pin To N Plug, Male Pin 50 Ohms
