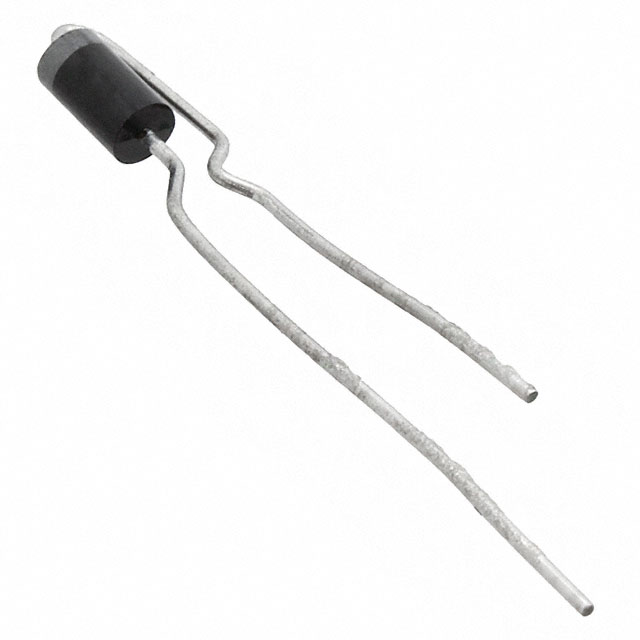

SARS01W

Active

Sanken Electric USA Inc.

DIODE GEN PURP 800V 1.2A AXIAL

Search across all available documentation for this part.

Active

Sanken Electric USA Inc.

DIODE GEN PURP 800V 1.2A AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	SARS01W

Current - Average Rectified (Io)	1.2 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Radial Bend, Axial
Reverse Recovery Time (trr)	18 µs
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Axial
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	800 V
Voltage - Forward (Vf) (Max) @ If [Max]	920 mV

Part	Current - Average Rectified (Io)	Package / Case	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Reverse Leakage @ Vr	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Speed	Technology	Supplier Device Package	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]
Sanken Electric USA Inc. SARS01W	1.2 A	Axial Radial Bend	920 mV	10 µA	Through Hole	150 °C	-40 °C	Standard Recovery >500ns	200 mA	Standard	Axial	18 µs	800 V
Sanken Electric USA Inc. SARS01V1	1.2 A	Axial	920 mV	10 µA	Through Hole	150 °C	-40 °C	Standard Recovery >500ns	200 mA	Standard	Axial	18 µs	800 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 800 V 1.2A Through Hole Axial
