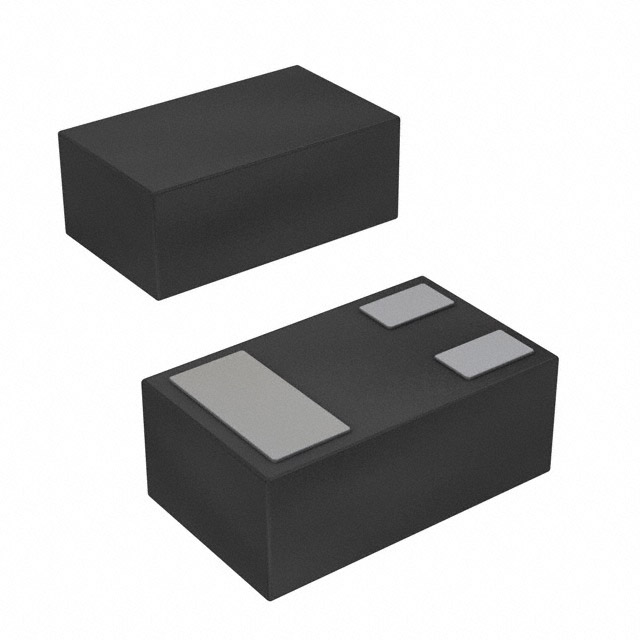

2SC584800A

Obsolete

Panasonic Industrial Automation Sales

TRANS NPN 50V 0.1A ML3-N2

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS NPN 50V 0.1A ML3-N2

Technical Specifications

Parameters and characteristics for this part

Specification	2SC584800A

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	100 µA
DC Current Gain (hFE) (Min) @ Ic, Vce	180 hFE
Frequency - Transition	100 MHz
Mounting Type	Surface Mount
Operating Temperature	125 ¯C
Package / Case	SOT-883, SC-101
Power - Max [Max]	100 mW
Supplier Device Package	ML3-N2
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Transistor Type	Power - Max [Max]	Operating Temperature	Mounting Type	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce	Supplier Device Package	Package / Case
Panasonic Industrial Automation Sales 2SC584800A	100 µA	50 V	100 mA	NPN	100 mW	125 ¯C	Surface Mount	100 MHz	180 hFE	ML3-N2	SC-101 SOT-883

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 50 V 100 mA 100MHz 100 mW Surface Mount ML3-N2
