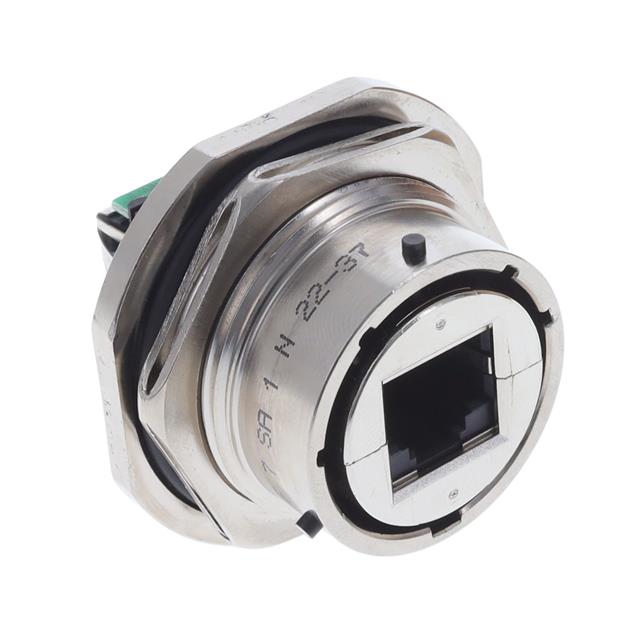

RJF7SA1N

Active

Amphenol Socapex

CONN MOD COUPLER 8P8C TO 8P8C

Search across all available documentation for this part.

Active

Amphenol Socapex

CONN MOD COUPLER 8P8C TO 8P8C

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Feature	Ingress Protection	Shell Material, Finish	Type	Convert To (Adapter End)	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Features	Shielding	Convert From (Adapter End)	Mounting Type	Termination	Number of Ports	Number of Positions/Contacts	Connector Type	Tab Direction	LED Color	Orientation	Number of Rows
Amphenol Socapex RJF7SA1N	Front Side Nut	IP67 - Dust Tight Waterproof	Metal Nickel Plated	Coupler	8p8c (RJ45) Jack	Cat5e	85 °C	-40 °C	Circular Bayonet Coupling	Unshielded	Jack 8p8c (RJ45)	Bulkhead Panel Mount
Amphenol Socapex RJF7SA2B05100BTX		IP68 - Dust Tight Waterproof				Cat5e	85 °C	-40 °C	Circular Bayonet Coupling	Unshielded		Bulkhead Panel Mount	Wire Leads	1	8p8c (RJ45 Ethernet)	Jack	User Selectable	Does Not Contain LED	Straight	1
Amphenol Socapex RJF7SA1RAG		IP68 - Dust Tight Waterproof				Cat5e	85 °C	-40 °C	Circular Bayonet Coupling	Unshielded		Bulkhead Panel Mount	Wire Leads	1	8p8c (RJ45 Ethernet)	Jack	User Selectable	Does Not Contain LED	Straight	1
Amphenol Socapex RJF7SA1B	Front Side Nut	IP67 - Dust Tight Waterproof	Metal	Coupler	8p8c (RJ45) Jack	Cat5e	85 °C	-40 °C	Circular Bayonet Coupling	Unshielded	Jack 8p8c (RJ45)	Bulkhead Panel Mount
Amphenol Socapex RJF7SA2B10100BTX		IP68 - Dust Tight Waterproof				Cat5e	85 °C	-40 °C	Circular Bayonet Coupling	Unshielded		Bulkhead Panel Mount	Wire Leads	1	8p8c (RJ45 Ethernet)	Jack	User Selectable	Does Not Contain LED	Straight	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Unshielded
