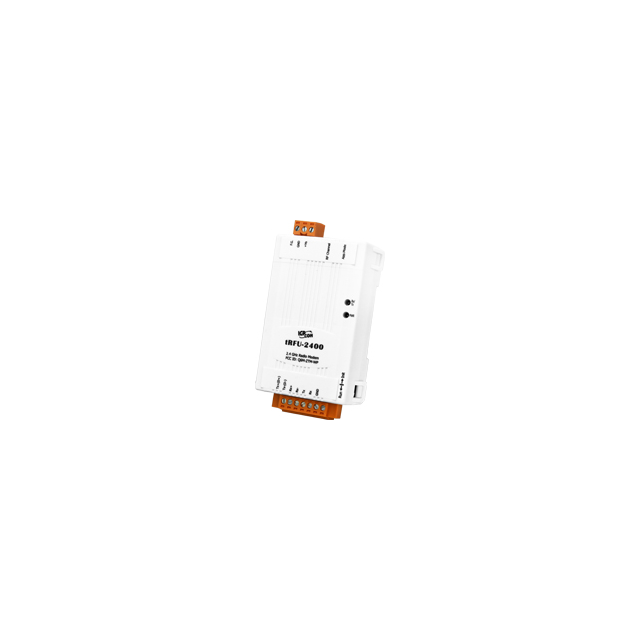

TRFU-2400
ActiveICP DAS USA INC
RF MODEM ( 2.4 GHZ ) WITH RS-232
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TRFU-2400
ActiveICP DAS USA INC
RF MODEM ( 2.4 GHZ ) WITH RS-232
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TRFU-2400 |
|---|---|
| Applications | Wireless |
| Data Rate (Max) [Max] | 115.2 kbps |
| Frequency [Max] | 2.48 GHz |
| Frequency [Min] | 2.405 GHz |
| Function | Modem |
| Interface | RS-485, RS-422, RS-232 |
| Modulation or Protocol | O-QPSK, DSSS |
| Power - Output | 17 dBm |
| Sensitivity | -97 dBm |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 369.00 | |
Description
General part information
TRFU-24 Series
RF Modem 2.405GHz ~ 2.48GHz DSSS, O-QPSK RS-232, RS-422, RS-485 115.2kbps
Documents
Technical documentation and resources
