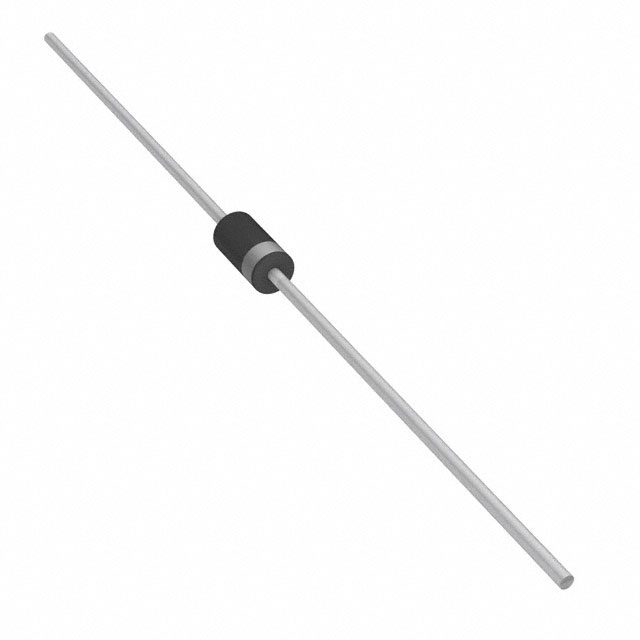

1N4942C.TR

Unknown

Semtech Corporation

DIODE GEN PURP 200V 1A AXIAL

Search across all available documentation for this part.

Unknown

Semtech Corporation

DIODE GEN PURP 200V 1A AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	1N4942C.TR

Capacitance @ Vr, F	27 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	500 nA
Mounting Type	Through Hole
Package / Case	Axial
Reverse Recovery Time (trr)	150 ns
Speed	200 mA, 500 ns
Supplier Device Package	Axial
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1.2 V

Part	Technology	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Package / Case	Mounting Type	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Supplier Device Package	Speed	Voltage - Forward (Vf) (Max) @ If
Semtech Corporation 1N4942C.TR	Standard	27 pF	150 ns	Axial	Through Hole	500 nA	200 V	1 A	Axial	200 mA 500 ns	1.2 V
Semtech Corporation 1N4942				Axial	Through Hole	500 nA			Axial		1.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 200 V 1A Through Hole Axial

Technical documentation and resources

No documents available
