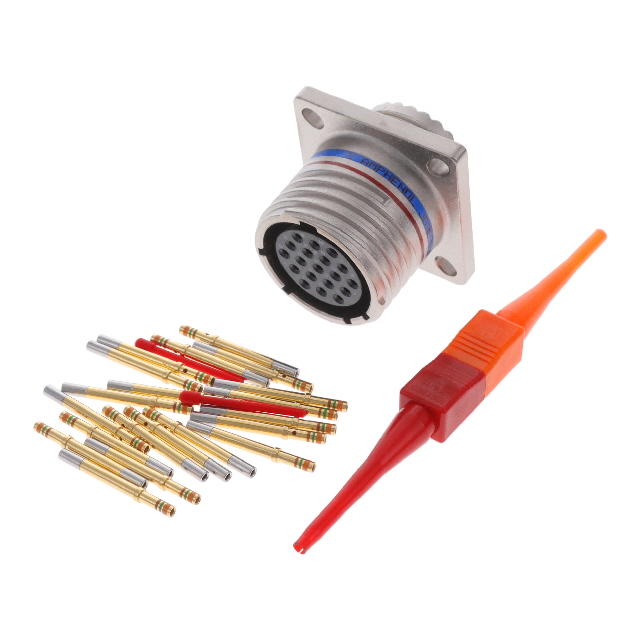

D38999/20MD19SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 19POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20MD19SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 19POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20MD19SN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	19
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Composite
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Composite
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	15
Shell Size, MIL	D
Shielding	Shielded
Termination	Crimp

D38999/20MD Series

Part	Grade	Shell Size, MIL	Connector Type	Orientation	Contact Material	Mounting Feature	Ingress Protection	Applications	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Qualification	Color	Termination	Primary Material	Contact Finish - Mating	Number of Positions	Shell Finish	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Shape	Note	Contact Size	Housing Color	Contact Type	Type	Shell Size - Insert	Contact Size	Contact Size	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Amphenol Aerospace Operations D38999/20MD97SC	Military	D	Receptacle Female Sockets	C	Copper Alloy	Flange	Environment Resistant	Aerospace Aviation Marine Military	7.5 A 13 A	-65 ░C	200 °C	Shielded	MIL-DTL-38999 Series III	Silver	Crimp	Composite	Gold	12	Electroless Nickel	Composite	1.27 µm	50 µin	97	15
Amphenol Aerospace Operations D38999/20MD35HB-LC	Military	D	Receptacle Housing	B		Flange	Environment Resistant			-65 ░C	200 °C	Shielded	MIL-DTL-38999 Series III					37	Electroless Nickel	Composite			35	15	Circular	Contacts Not Included	22D	Silver	Crimp	For Male Pins
Amphenol Aerospace Operations D38999/20MD5HB	Military	D	Male Pins Receptacle	B	Copper Alloy	Flange	Environment Resistant	Aviation Marine Military		-65 ░C	200 °C	Shielded	MIL-DTL-38999 Series III	Silver	Crimp	Composite	Gold		Electroless Nickel	Composite	2.54 çm	100 çin									15-5
Amphenol Aerospace Operations D38999/20MD18PC	Military	D	Male Pins Receptacle	C	Copper Alloy	Flange	Environment Resistant	Aerospace Aviation Marine Military	7.5 A	-65 ░C	200 °C	Shielded	MIL-DTL-38999 Series III	Silver	Crimp	Composite	Gold	18	Electroless Nickel	Composite	1.27 µm	50 µin	18	15
Amphenol Aerospace Operations D38999/20MD5HC-LC	Military	D	Receptacle Housing	C		Flange	Environment Resistant			-65 ░C	200 °C	Shielded	MIL-DTL-38999 Series III						Electroless Nickel	Composite					Circular	Contacts Not Included		Silver	Crimp	For Male Pins	15-5	16
Amphenol Aerospace Operations D38999/20MD15SC-LC	Military	D	Receptacle Housing	C		Flange	Environment Resistant			-65 ░C	200 °C	Shielded	MIL-DTL-38999 Series III					15	Electroless Nickel	Composite			15	15	Circular	Contacts Not Included		Silver	Crimp	For Female Sockets		16 20
Amphenol Aerospace Operations D38999/20MD35JB	Military	D	Receptacle Female Sockets	B	Copper Alloy	Flange	Environment Resistant	Aviation Marine Military		-65 ░C	200 °C	Shielded	MIL-DTL-38999 Series III	Silver	Crimp	Composite	Gold	37	Electroless Nickel	Composite	2.54 çm	100 çin	35	15
Amphenol Aerospace Operations D38999/20MD97BB	Military	D	Receptacle Housing	B		Flange	Environment Resistant			-65 ░C	200 °C	Shielded	MIL-DTL-38999 Series III					12	Electroless Nickel	Composite			97	15	Circular	Contacts Not Included		Silver	Crimp	For Female Sockets			4 8 16 20
Amphenol Aerospace Operations D38999/20MD19SN	Military	D	Receptacle Female Sockets	N	Copper Alloy	Flange	Environment Resistant	Aerospace Aviation Marine Military		-65 ░C	200 °C	Shielded	MIL-DTL-38999 Series III	Silver	Crimp	Composite	Gold	19	Electroless Nickel	Composite	1.27 µm	50 µin												19	15
Amphenol Aerospace Operations D38999/20MD97JB-LC	Military	D	Receptacle Housing	B		Flange	Environment Resistant			-65 ░C	200 °C	Shielded	MIL-DTL-38999 Series III					12	Electroless Nickel	Composite			97	15	Circular	Contacts Not Included		Silver	Crimp	For Female Sockets			4 8 16 20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 133.62
		10	$ 122.61
		25	$ 117.90
		50	$ 113.97

Description

General part information

D38999/20MD Series

19 Position Circular Connector Receptacle, Female Sockets Crimp
