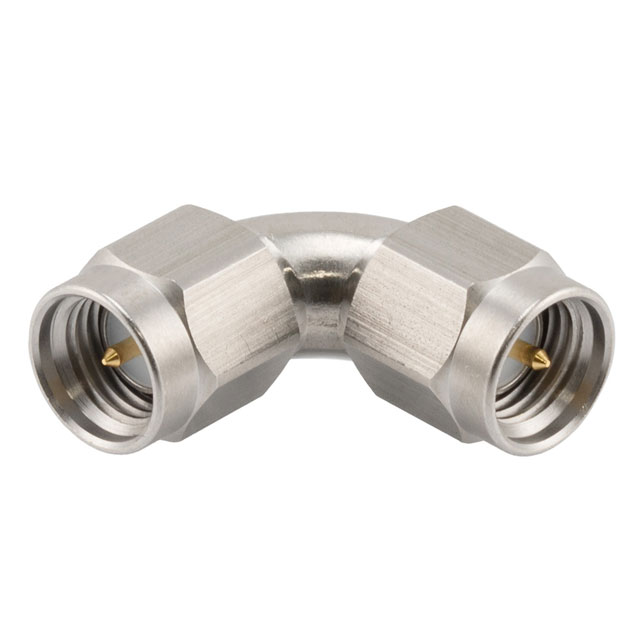

PE91496

Active

Pasternack

COAX ADAPT SMA TO SMA

Search across all available documentation for this part.

Active

Pasternack

COAX ADAPT SMA TO SMA

Technical Specifications

Parameters and characteristics for this part

Specification	PE91496

Adapter Series	SMA to SMA
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	26 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Style	Right Angle

Part	Adapter Type	Style	Mounting Type	Frequency - Max [Max]	Center Contact Material	Impedance	Adapter Series	Convert To (Adapter End)	Center Contact Plating	Conversion Type	Body Material	Center Gender	Convert From (Adapter End)	Dielectric Material
Pasternack PE91496	Plug to Plug	Right Angle	Free Hanging (In-Line) Right Angle	26 GHz	Beryllium Copper	50 Ohms	SMA to SMA	Male Pin SMA Plug	Gold	Same Series	Stainless Steel	Male to Male	SMA Plug Male Pin	Polytetrafluoroethylene (PTFE)
Pasternack PE91494	Jack to Jack	Right Angle	Free Hanging (In-Line) Right Angle	18 GHz	Beryllium Copper	50 Ohms	SMA to SMA	Female Socket SMA Jack	Gold	Same Series	Stainless Steel	Female to Female	Female Socket SMA Jack	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
