831-87-004-64-001101

Active

PRECI-DIP SA

2MM 3A SINGLE ROW TIN -55℃~+125℃ 4P STRAIGHT 4.2MM PLUGIN,P=2MM FEMALE HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

831-87-004-64-001101

Active

PRECI-DIP SA

2MM 3A SINGLE ROW TIN -55℃~+125℃ 4P STRAIGHT 4.2MM PLUGIN,P=2MM FEMALE HEADERS ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	831-87-004-64-001101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.165 in
Insulation Height [z]	4.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder, Press-Fit

831-87 Series

...

Part	Current Rating (Amps)	Number of Rows	Contact Type	Number of Positions	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Insulation Color	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Material Flammability Rating	Number of Positions Loaded	Contact Finish - Mating	Contact Shape	Connector Type	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Fastening Type	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
PRECI-DIP SA 831-87-004-64-001101	3 A	1	Female Socket	4	Press-Fit Solder	0.079 in	2 mm	Through Hole	Black	Tin	-55 °C	125 °C	Beryllium Copper	UL94 V-0	All	Gold	Circular	Socket	0.165 in	4.2 mm	Flash	2.5 mm	0.098 in	Push-Pull
PRECI-DIP SA 831-87-027-40-001101	3 A	1	Female Socket	27	Solder	0.079 in	2 mm	Surface Mount Right Angle	Black	Tin	-55 °C	125 °C	Beryllium Copper	UL94 V-0	All	Gold	Circular	Socket			Flash			Push-Pull	0.087 "	2.2 mm
PRECI-DIP SA 831-87-027-10-230101	3 A	1	Female Socket	27	Kinked Pin Solder	0.079 in	2 mm	Through Hole	Black	Tin	-55 °C	125 °C	Beryllium Copper	UL94 V-0	All	Gold	Circular	Socket	0.165 in	4.2 mm	Flash	3.1 mm	0.122 "	Push-Pull
PRECI-DIP SA 831-87-025-10-230101	3 A	1	Female Socket		Kinked Pin Solder	0.079 in	2 mm	Through Hole	Black	Tin	-55 °C	125 °C	Beryllium Copper	UL94 V-0	All	Gold	Circular	Socket	0.165 in	4.2 mm	Flash	3.1 mm	0.122 "	Push-Pull
PRECI-DIP SA 831-87-013-40-001191	3 A	1	Female Socket	13	Solder	0.079 in	2 mm	Surface Mount Right Angle	Black	Tin	-55 °C	125 °C	Beryllium Copper	UL94 V-0	All	Gold	Circular	Socket			Flash			Push-Pull	0.087 "	2.2 mm
PRECI-DIP SA 831-87-008-64-001101	3 A	1	Female Socket	8	Press-Fit Solder	0.079 in	2 mm	Through Hole	Black	Tin	-55 °C	125 °C	Beryllium Copper	UL94 V-0	All	Gold	Circular	Socket	0.165 in	4.2 mm	Flash	2.5 mm	0.098 in	Push-Pull
PRECI-DIP SA 831-87-035-30-001101	3 A	1	Female Socket	35	Solder	0.079 in	2 mm	Surface Mount	Black	Tin	-55 °C	125 °C	Beryllium Copper	UL94 V-0	All	Gold	Circular	Socket			Flash			Push-Pull	0.228 in	5.8 mm
PRECI-DIP SA 831-87-041-40-001101	3 A	1	Female Socket	41	Solder	0.079 in	2 mm	Surface Mount Right Angle	Black	Tin	-55 °C	125 °C	Beryllium Copper	UL94 V-0	All	Gold	Circular	Socket			Flash			Push-Pull	0.087 "	2.2 mm
PRECI-DIP SA 831-87-047-10-001101	3 A	1	Female Socket		Solder	0.079 in	2 mm	Through Hole	Black	Tin	-55 °C	125 °C	Beryllium Copper	UL94 V-0	All	Gold	Circular	Socket	0.165 in	4.2 mm	Flash			Push-Pull			3.18 mm	0.125 in
PRECI-DIP SA 831-87-040-30-001101	3 A	1	Female Socket	40	Solder	0.079 in	2 mm	Surface Mount	Black	Tin	-55 °C	125 °C	Beryllium Copper	UL94 V-0	All	Gold	Circular	Socket			Flash			Push-Pull	0.228 in	5.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	870	$ 0.80
LCSC	Piece	1	$ 1.91
		200	$ 0.76
		500	$ 0.74
		870	$ 0.72

Description

General part information

831-87 Series

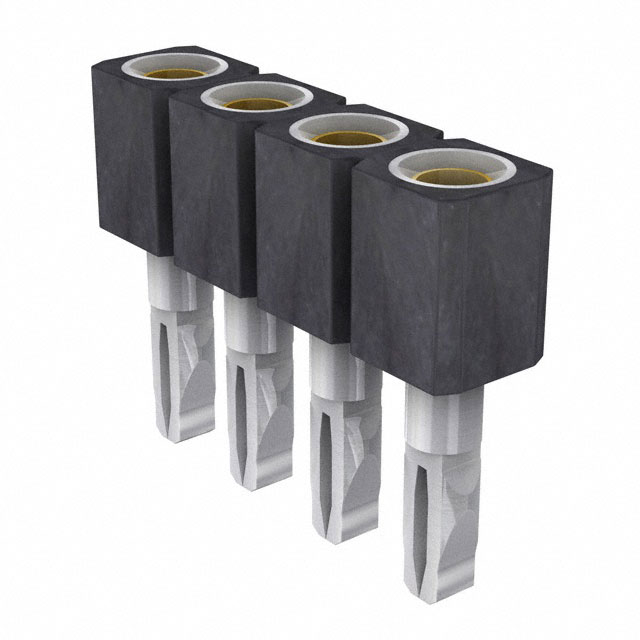

4 Position Socket Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available
