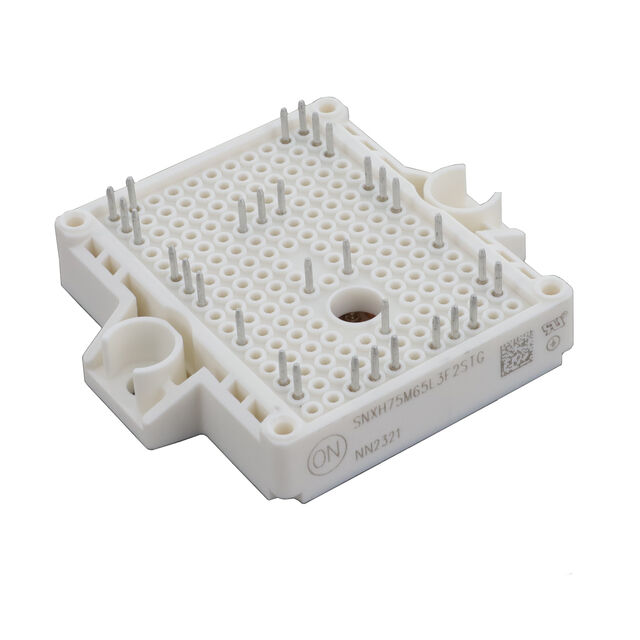

SNXH75M65L3F2STG

Active

ON Semiconductor

IGBT MODULE FULL 650V 75A 32PIM

Search across all available documentation for this part.

Active

ON Semiconductor

IGBT MODULE FULL 650V 75A 32PIM

Technical Specifications

Parameters and characteristics for this part

Specification	SNXH75M65L3F2STG

Configuration	Full Bridge Inverter
Current - Collector (Ic) (Max) [Max]	75 A
Current - Collector Cutoff (Max) [Max]	250 µA
IGBT Type	Field Stop
Input	Standard
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	236 W
Supplier Device Package	32-PIM
Supplier Device Package [x]	56.7
Supplier Device Package [y]	42.5
Vce(on) (Max) @ Vge, Ic	2.2 V
Voltage - Collector Emitter Breakdown (Max)	650 V

Part	Current - Collector (Ic) (Max) [Max]	Package / Case	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Vce(on) (Max) @ Vge, Ic	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	IGBT Type	Voltage - Collector Emitter Breakdown (Max)	Configuration	Input	NTC Thermistor
ON Semiconductor SNXH75M65L3F2STG	75 A	Module	250 µA	236 W	56.7	42.5	32-PIM	2.2 V	Chassis Mount	150 °C	-40 °C	Field Stop	650 V	Full Bridge Inverter	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT Module Field Stop Full Bridge Inverter 650 V 75 A 236 W Chassis Mount 32-PIM (56.7x42.5)
