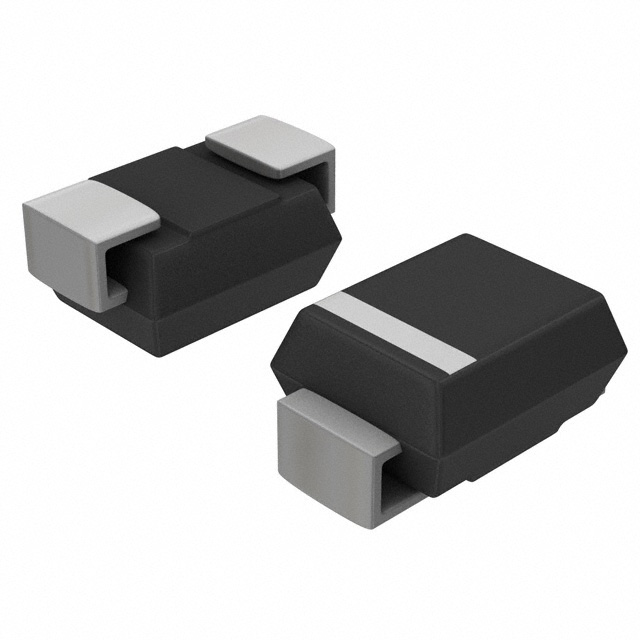

1.5SMC100A

Active

Bourns Inc.

DIO TVS VBD 100V 1.5KW UNIDIR SMC /TAPE & REEL - 13" REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Datasheet

1.5SMC100A

Active

Bourns Inc.

DIO TVS VBD 100V 1.5KW UNIDIR SMC /TAPE & REEL - 13" REEL

Deep-Dive with AI

DocumentsProduct Change Notice EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1.5SMC100A

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	11.1 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SMC, DO-214AB
Power - Peak Pulse	1.5 kW
Power - Peak Pulse	1500 W
Power Line Protection	False
Supplier Device Package	DO-214AB (SMC)
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	95 V
Voltage - Clamping (Max) @ Ipp	137 V
Voltage - Reverse Standoff (Typ)	85.5 V

1.5SMC Series

Part	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Supplier Device Package	Type	Unidirectional Channels [custom]	Power - Peak Pulse	Power - Peak Pulse	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)	Mounting Type	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Package / Case	Voltage - Clamping (Max) @ Ipp	Bidirectional Channels [custom]
Bourns Inc. 1.5SMC400A	General Purpose	548 V	DO-214AB (SMC)	Zener	1	1.5 kW	1500 W	-55 °C	150 °C	342 V	Surface Mount	380 V	2.8 A	DO-214AB SMC
Bourns Inc. 1.5SMC13A	General Purpose		DO-214AB (SMC)	Zener	1	1.5 kW	1500 W	-55 °C	150 °C	11.1 V	Surface Mount	12.4 V	83.5 A	DO-214AB SMC	18.2 V
Bourns Inc. 1.5SMC100A	General Purpose		DO-214AB (SMC)	Zener	1	1.5 kW	1500 W	-55 °C	150 °C	85.5 V	Surface Mount	95 V	11.1 A	DO-214AB SMC	137 V
Bourns Inc. 1.5SMC220CA	General Purpose	328 V	DO-214AB (SMC)	Zener		1.5 kW	1500 W	-55 °C	150 °C		Surface Mount	209 V	4.6 A	DO-214AB SMC		1
Bourns Inc. 1.5SMC68CA	General Purpose	92 V	DO-214AB (SMC)	Zener		1.5 kW	1500 W	-55 °C	150 °C	58.1 V	Surface Mount	64.6 V	16.5 A	DO-214AB SMC		1
Bourns Inc. 1.5SMC550CA	General Purpose		DO-214AB (SMC)	Zener		1.5 kW	1500 W	-55 °C	150 °C	495 V	Surface Mount	522.5 V	2 A	DO-214AB SMC	760 V	1
Bourns Inc. 1.5SMC180A	General Purpose	246 V	DO-214AB (SMC)	Zener	1	1.5 kW	1500 W	-55 °C	150 °C	154 V	Surface Mount	171 V	6.2 A	DO-214AB SMC
Bourns Inc. 1.5SMC91CA	General Purpose		DO-214AB (SMC)	Zener		1.5 kW	1500 W	-55 °C	150 °C	77.8 V	Surface Mount	86.5 V	12.2 A	DO-214AB SMC	125 V	1
Bourns Inc. 1.5SMC550A	General Purpose		DO-214AB (SMC)	Zener	1	1.5 kW	1500 W	-55 °C	150 °C	495 V	Surface Mount	522.5 V	2 A	DO-214AB SMC	760 V
Bourns Inc. 1.5SMC8.2A	General Purpose	12.1 V	DO-214AB (SMC)	Zener	1	1.5 kW	1500 W	-55 °C	150 °C	7.02 V	Surface Mount	7.79 V	125.6 A	DO-214AB SMC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.65
		10	$ 0.55
		100	$ 0.38
		500	$ 0.30
		1000	$ 0.24
	Digi-Reel®	1	$ 0.65
		10	$ 0.55
		100	$ 0.38
		500	$ 0.30
		1000	$ 0.24
	Tape & Reel (TR)	3000	$ 0.18
Newark	Each	2500	$ 0.20
	Each (Supplied on Full Reel)	1	$ 0.28
		5000	$ 0.28
		10000	$ 0.26
		20000	$ 0.24
		30000	$ 0.22
		50000	$ 0.21

Description

General part information

1.5SMC Series

137V Clamp 11.1A Ipp Tvs Diode Surface Mount DO-214AB (SMC)

Documents

Technical documentation and resources

Product Change Notice EN

Datasheet
