SI8380PS-IU

Active

Skyworks Solutions Inc.

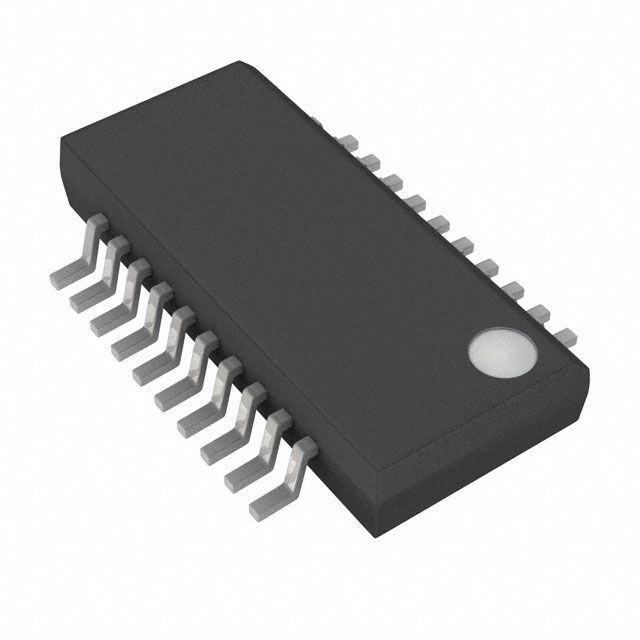

DGTL ISOLTR 2.5KV 8CH GP 20-SSOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SI8380PS-IU

Active

Skyworks Solutions Inc.

DGTL ISOLTR 2.5KV 8CH GP 20-SSOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI8380PS-IU

Channel Type	Unidirectional
Common Mode Transient Immunity (Min) [Min]	200 V/ns
Data Rate	250 KBd
Inputs - Side 1/Side 2 [custom]	8
Inputs - Side 1/Side 2 [custom]	0
Isolated Power	False
Mounting Type	Surface Mount
Number of Channels	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	20-SSOP
Package / Case [custom]	0.154 in
Package / Case [custom]	3.9 mm
Rise / Fall Time (Typ) [custom]	3.9 ns
Rise / Fall Time (Typ) [custom]	3.7 ns
Supplier Device Package	20-QSOP
Technology	Capacitive Coupling
Type	General Purpose
Voltage - Isolation	2500 Vrms
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.25 V

SI8380 Series

Part	Inputs - Side 1/Side 2 [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Channel Type	Supplier Device Package	Number of Channels	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Type	Package / Case [custom]	Package / Case	Package / Case [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Common Mode Transient Immunity (Min) [Min]	Technology	Mounting Type
Skyworks Solutions Inc. SI8380S-IU	8	3.9 ns	3.7 ns	Unidirectional	20-QSOP	8	5.5 V	2.25 V	250 KBd	SPI	0.154 in	20-SSOP	3.9 mm	125 °C	-40 °C	2500 Vrms	200 V/ns	Capacitive Coupling	Surface Mount
Skyworks Solutions Inc. SI8380S-IUR	8	3.9 ns	3.7 ns	Unidirectional	20-QSOP	8	5.5 V	2.25 V	250 KBd	SPI	0.154 in	20-SSOP	3.9 mm	125 °C	-40 °C	2500 Vrms	200 V/ns	Capacitive Coupling	Surface Mount
Skyworks Solutions Inc. SI8380P-IU	8	3.9 ns	3.7 ns	Unidirectional	20-QSOP	8	5.5 V	2.25 V	250 KBd	General Purpose	0.154 in	20-SSOP	3.9 mm	125 °C	-40 °C	2500 Vrms	200 V/ns	Capacitive Coupling	Surface Mount
Skyworks Solutions Inc. SI8380P-IUR	8	3.9 ns	3.7 ns	Unidirectional	20-QSOP	8	5.5 V	2.25 V	250 KBd	General Purpose	0.154 in	20-SSOP	3.9 mm	125 °C	-40 °C	2500 Vrms	200 V/ns	Capacitive Coupling	Surface Mount
Skyworks Solutions Inc. SI8380PS-IU	8	3.9 ns	3.7 ns	Unidirectional	20-QSOP	8	5.5 V	2.25 V	250 KBd	General Purpose	0.154 in	20-SSOP	3.9 mm	125 °C	-40 °C	2500 Vrms	200 V/ns	Capacitive Coupling	Surface Mount
Skyworks Solutions Inc. SI8380PM-IUR	8	3.9 ns	3.7 ns	Unidirectional	20-QSOP	8	5.5 V	2.25 V	250 KBd	General Purpose	0.154 in	20-SSOP	3.9 mm	125 °C	-40 °C	2500 Vrms	200 V/ns	Capacitive Coupling	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.98
		10	$ 4.63
		56	$ 3.59
		112	$ 3.29
		280	$ 2.96
		504	$ 2.81

Description

General part information

SI8380 Series

General Purpose Digital Isolator 2500Vrms 8 Channel 250kbps 200kV/µs CMTI 20-SSOP (0.154", 3.90mm Width)

Documents

Technical documentation and resources
