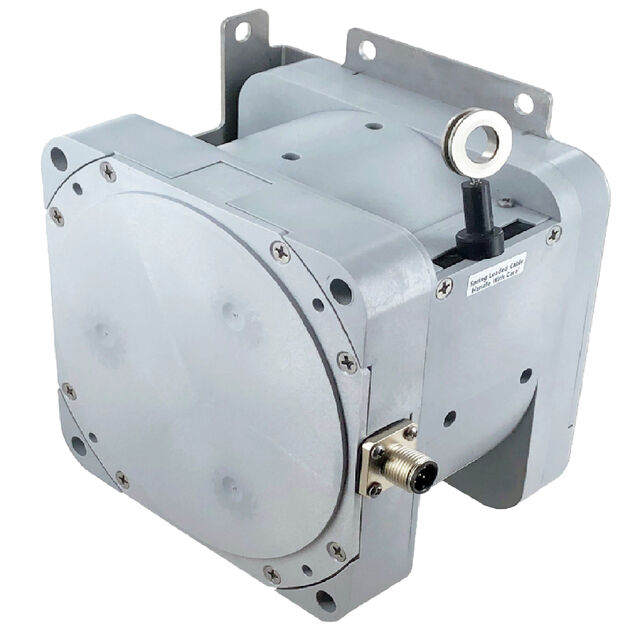

SK1-400-3
ActiveTE Connectivity Measurement Specialties
400 IN VOLTAGE DIVIDER STRING PO
Deep-Dive with AI
Search across all available documentation for this part.
SK1-400-3
ActiveTE Connectivity Measurement Specialties
400 IN VOLTAGE DIVIDER STRING PO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SK1-400-3 |
|---|---|
| Actuator Type | String Potentiometer |
| For Measuring | Linear Position |
| Linear Range [Max] | 400 in |
| Linear Range [Max] | 10160 mm |
| Linear Range [Min] | 0 mm |
| Linear Range [Min] | 0 in |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Analog Voltage |
| Package / Case | Module |
| Resistance Tolerance | 10% |
| Technology | Resistive |
| Termination Style | Connector |
| Voltage - Supply | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1264.39 | |
| 5 | $ 1070.70 | |||
Description
General part information
SK1 Series
Resistive Sensor Linear Position String Potentiometer Connector
Documents
Technical documentation and resources
No documents available
