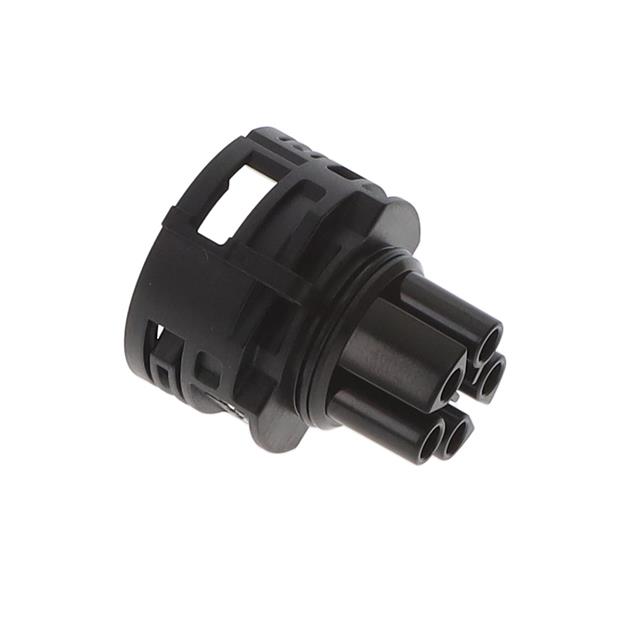

SK6-021M05

Active

Anderson Power Products, Inc.

CONN PLG HSG FMALE 5POS INLINE

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

CONN PLG HSG FMALE 5POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	SK6-021M05

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Latch Lock
Features	Backshell
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	5
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Material	Polycarbonate (PC)
Shell Size - Insert	21-5
Shielding	Unshielded
Type	For Female Sockets

Part	Contact Type	Type	Features	Housing Color	Ingress Protection	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Connector Type	Shell Material	Mounting Type	Note	Number of Positions [custom]	Contact Shape	Orientation	Shielding	Material Flammability Rating	Insert Material
Anderson Power Products, Inc. SK6-021M05	Crimp	For Female Sockets	Backshell	Black	IP68 - Dust Tight Waterproof	21-5	-20 C	105 ░C	Latch Lock	Plug Housing	Polycarbonate (PC)	Free Hanging (In-Line)	Contacts Not Included	5	Circular	Keyed	Unshielded	UL94 V-0	Polycarbonate (PC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
