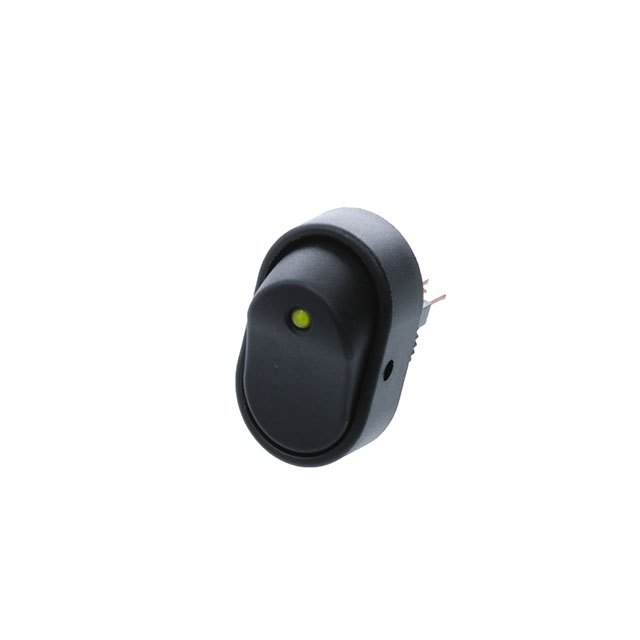

RD2-1A-DC-1-AL
ActiveSwitch Components
SWITCH ROCKER SPST 30A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RD2-1A-DC-1-AL
ActiveSwitch Components
SWITCH ROCKER SPST 30A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RD2-1A-DC-1-AL |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) - Illuminated |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Electrical Life | 6000 Cycles |
| Illumination Type, Color | Amber, LED |
| Illumination Voltage (Nominal) | 12 VDC |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Threaded Body with Nut |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.98 | |
| 10 | $ 2.83 | |||
| 25 | $ 2.77 | |||
| 50 | $ 2.70 | |||
| 100 | $ 2.55 | |||
| 250 | $ 2.35 | |||
| 500 | $ 1.78 | |||
| 1000 | $ 1.63 | |||
Description
General part information
RD2-1A Series
Rocker Switch SPST 30A (DC) Panel Mount, Threaded Body with Nut
