Q-6901X0008002M

Active

Amphenol Custom Cable

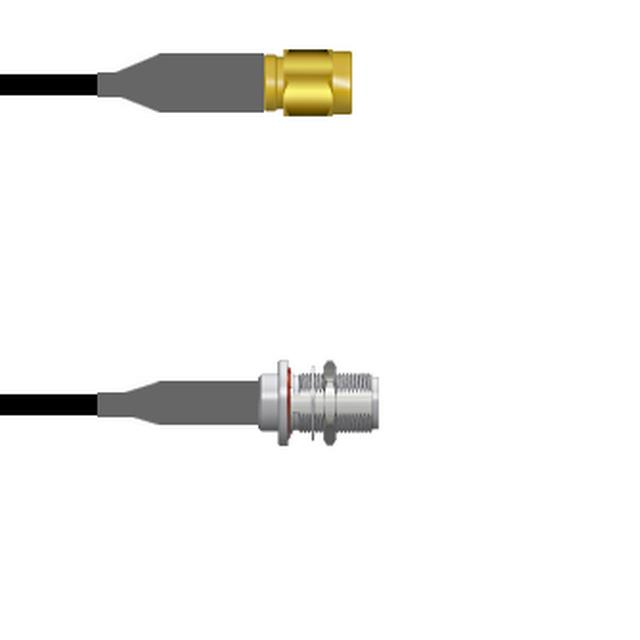

COAX CBL RP-SMA TO N-TYPE 6.6'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL RP-SMA TO N-TYPE 6.6'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-6901X0008002M

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	RP-SMA to N-Type

Part	Color	Cable Impedance	1st Connector Mounting Type	1st Connector	Features	2nd Connector	2nd Connector Mounting Feature	2nd Connector Mounting Type	Length	Length	Length	Cable Type	1st Contact Gender	Connector Impedance	Style	Frequency - Max [Max]	2nd Contact Gender	Overall Impedance
Amphenol Custom Cable Q-6901X0008002M	Black	50 Ohms	Free Hanging (In-Line)	RP-SMA Plug	Shielded	N-Type Jack	Bulkhead - Front Side Nut	Panel Mount	6.6 ft	78.7 in	2 m	RG-58	Female	50 Ohms	RP-SMA to N-Type	1 GHz	Female	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial RP-SMA to N-Type RG-58 78.7" (2.0m) 6.6'
