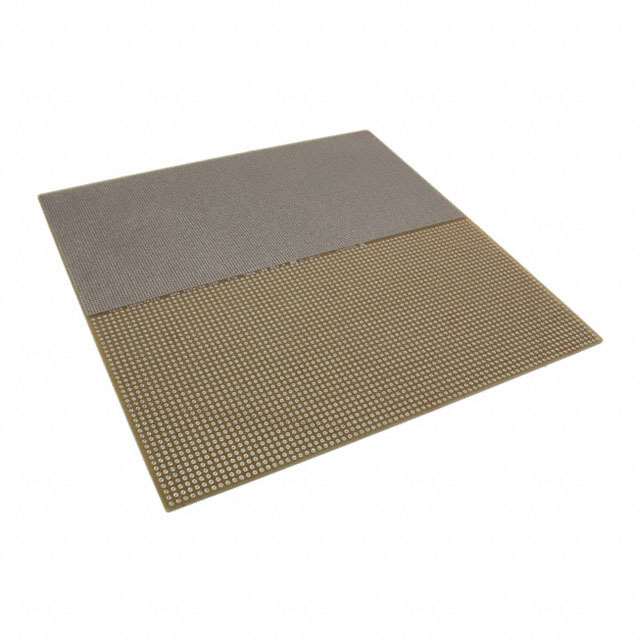

7050-100-LF
ActiveTWIN INDUSTRIES
BREADBOARD GENERAL PURPOSE PTH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7050-100-LF
ActiveTWIN INDUSTRIES
BREADBOARD GENERAL PURPOSE PTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7050-100-LF |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 0.0625 in |
| Board Thickness | 1.57 mm |
| Circuit Pattern | Pad Per Hole (Round) |
| Hole Diameter | 0.66 mm, 0.89 mm |
| Hole Diameter | 0.026 ", 0.035 " |
| Pitch [x] | 1.27 mm, 2.54 mm |
| Pitch [x] | 0.1 in, 0.05 in |
| Plating | Plated Through Hole (PTH) |
| Proto Board Type | Breadboard, General Purpose |
| Size / Dimension [x] | 8 " |
| Size / Dimension [x] | 203.2 mm |
| Size / Dimension [y] | 203.2 mm |
| Size / Dimension [y] | 8 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.00 | |
| 5 | $ 56.84 | |||
| 10 | $ 55.68 | |||
Description
General part information
7050-100 Series
Breadboard, General Purpose Plated Through Hole (PTH) Pad Per Hole (Round) 0.050" (1.27mm), 0.100" (2.54mm)
