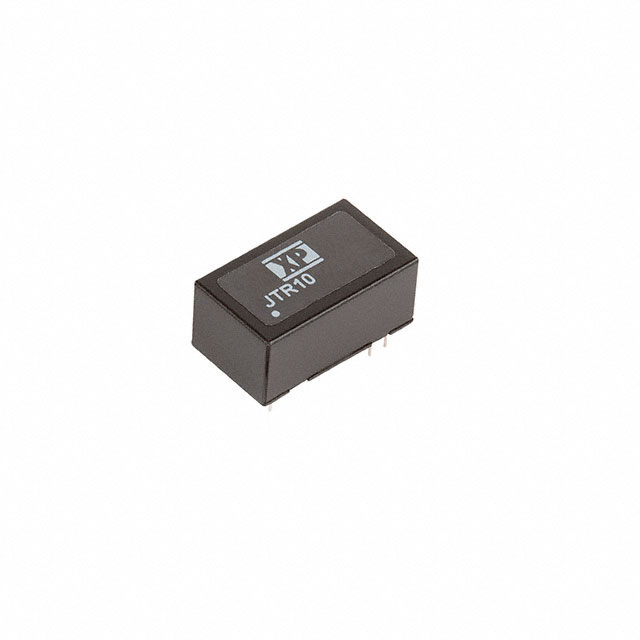

JTR1024D15
ActiveXP POWER
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 10 W, 2 OUTPUT, 15 V, 333 MA
Deep-Dive with AI
Search across all available documentation for this part.
JTR1024D15
ActiveXP POWER
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 10 W, 2 OUTPUT, 15 V, 333 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JTR1024D15 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, UL |
| Current - Output (Max) | 333 mA |
| Current - Output (Max) | 333 mA |
| Efficiency | 87 % |
| Features | OCP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 88 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-DIP Module |
| Package / Case | 6 Leads |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 23.8 mm |
| Size / Dimension [x] | 0.94 in |
| Size / Dimension [y] | 0.54 " |
| Size / Dimension [y] | 13.7 mm |
| Size / Dimension [z] | 0.41 " |
| Size / Dimension [z] | 10.5 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
JTR1024 Series
The JTR10 series are 10W DC to DC power supplies in DIP16 package. These converters come with ITE safety approvals and provide 1500VDC isolation voltage. The JTR10 converters provide high power density and come in a DIP16 package.
