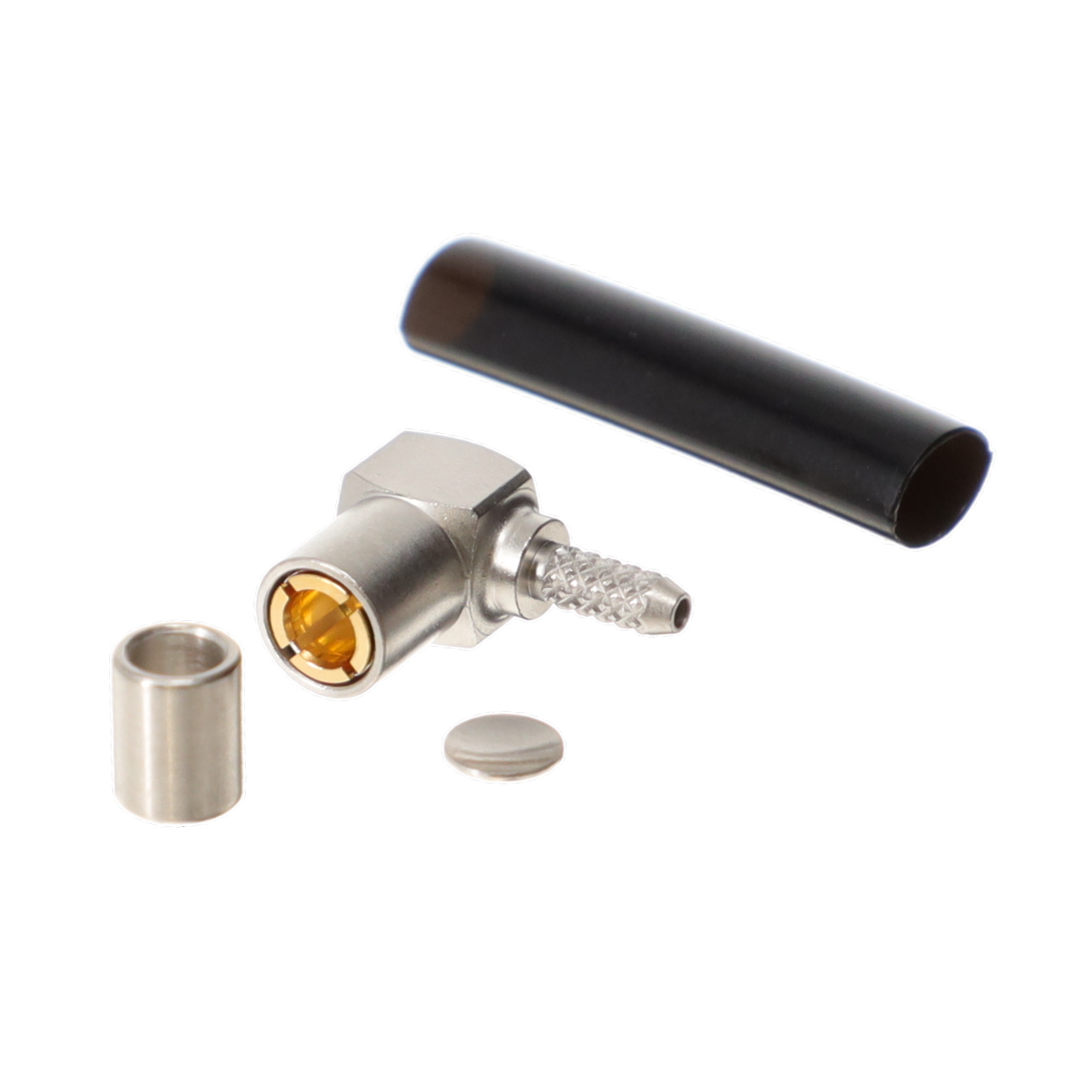

PO6-LP-196/U(40)

Active

Hirose Electric USA, Inc.

LOW PROFILE, PUSH ON LOCK, COMPACT COAXIAL CONNECTORS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

LOW PROFILE, PUSH ON LOCK, COMPACT COAXIAL CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	PO6-LP-196/U(40)

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-196A
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	Coaxial
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shield Termination	Crimp

Part	Cable Group	Connector Type	Body Finish	Number of Ports	Body Material	Shield Termination	Impedance	Housing Color	Fastening Type	Frequency - Max [Max]	Mating Cycles	Center Contact Plating	Connector Style	Contact Termination	Dielectric Material	Mounting Type	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
Hirose Electric USA, Inc. PO6-LP-196/U(40)	RG-196A	Male Pin Plug	Nickel	1	Brass	Crimp	50 Ohms	Silver	Snap-On	2 GHz	500	Gold	Coaxial	Solder	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Phosphor Bronze	-25 °C	85 °C
Hirose Electric USA, Inc. PO6-R-PC-1(40)		Female Socket Receptacle	Gold	1	Brass	Solder	50 Ohms	Gold	Snap-On	2 GHz	500	Gold	Coaxial	Solder	Polytetrafluoroethylene (PTFE)	Through Hole	Beryllium Copper	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
