QES-125-1/4-01-SS1000FT

Active

Qualtek

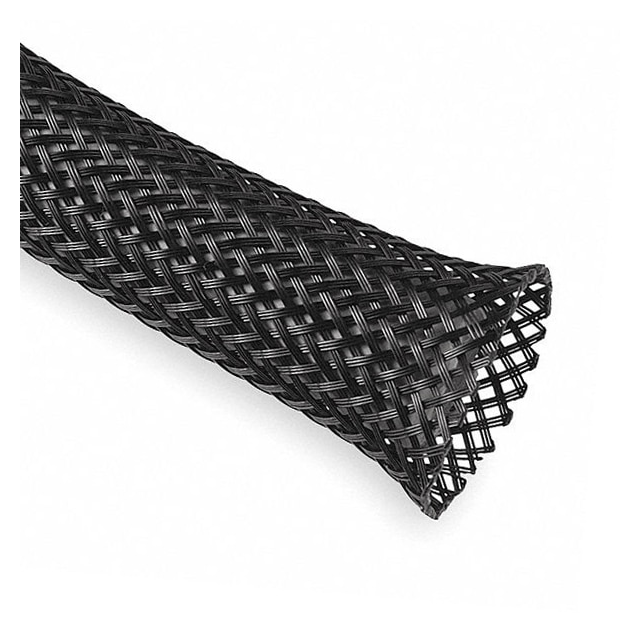

EXPAND SLEEVE 1/4" X 1000' BLK

Search across all available documentation for this part.

Active

Qualtek

EXPAND SLEEVE 1/4" X 1000' BLK

Technical Specifications

Parameters and characteristics for this part

Specification	QES-125-1/4-01-SS1000FT

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Inside, Expanded [diameter]	0.375 in
Diameter - Inside, Expanded [diameter]	9.52 mm
Heat Protection	Flame Retardant
Length	1000 ft
Length	304.8 m
Liquid Protection	Oil Resistant, Diesel Fuel Resistant, Gasoline Resistant, Fuel Resistant
Material	Polyester (PES)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Sleeve
Type Attributes	Expandable

Part	Color	Type	Heat Protection	Liquid Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Material	Operating Temperature [Max]	Operating Temperature [Min]	Abrasion Protection	Length	Length	Type Attributes
Qualtek QES-125-1/4-01-SS1000FT	Black	Sleeve	Flame Retardant	Diesel Fuel Resistant Fuel Resistant Gasoline Resistant Oil Resistant	0.375 in	9.52 mm	Polyester (PES)	125 °C	-70 °C	Abrasion and Cut Resistant	1000 ft	304.8 m	Expandable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sleeve X 1000' (304.80m) Black
