920-0031-01

Active

Schmartboard, Inc.

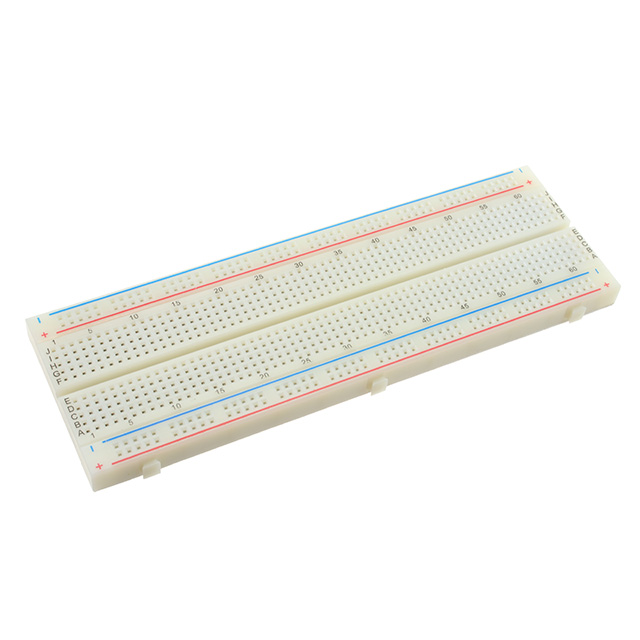

BREADBOARD 830 TEST POINTS

Search across all available documentation for this part.

Active

Schmartboard, Inc.

BREADBOARD 830 TEST POINTS

Technical Specifications

Parameters and characteristics for this part

Specification	920-0031-01

Number of 5-Tie Point Terminals	126
Number of Distribution Buses	2
Number of Terminal Strips	1
Number of Tie Points (Total)	830
Size / Dimension [x]	165.1 mm
Size / Dimension [x]	6.5 in
Size / Dimension [y]	2.13 in
Size / Dimension [y]	54 mm
Type	Terminal Strip (No Frame)

Part	Number of 5-Tie Point Terminals	Number of Terminal Strips	Number of Tie Points (Total)	Number of Distribution Buses	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Schmartboard, Inc. 920-0031-01	126	1	830	2	Terminal Strip (No Frame)	2.13 in	165.1 mm	6.5 in	54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 7.95

General part information

Solderless Breadboard Terminal Strip (No Frame) 6.50" L x 2.13" W (165.1mm x 54.0mm)

Technical documentation and resources

No documents available
