IQS263BEV02

Obsolete

Azoteq Corporation

IQS263 EVALUATION KIT 2

Search across all available documentation for this part.

Obsolete

Azoteq Corporation

IQS263 EVALUATION KIT 2

Technical Specifications

Parameters and characteristics for this part

Specification	IQS263BEV02

Sensing Range	Slider, Scroll Wheel, 3 Buttons/Keys
Sensor Type	Touch, Capacitive
Supplied Contents	Board(s)
Utilized IC / Part	IQS263
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.8 V

Part	Supplier Device Package	Number of Inputs	Resolution	Current - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Supplied Contents	Utilized IC / Part	Sensor Type	Sensing Range	Package / Case [x]	Package / Case [x]
Azoteq Corporation IQS263B-0-DNR	10-DFN (3x3)	3	8 b	305 µA	3.6 V	1.8 V	Buttons Slider Wheel	10-WFDFN Exposed Pad	Surface Mount	85 °C	-20 C	I2C
Azoteq Corporation IQS263BEV02					3.6 V	1.8 V							Board(s)	IQS263	Touch Capacitive	3 Buttons/Keys Scroll Wheel Slider
Azoteq Corporation IQS263B-0-MSR	10-MSOP	3	8 b	80 mA	3.6 V	1.8 V	Buttons Slider Wheel	10-MSOP 10-TFSOP	Surface Mount	85 °C	-20 C	I2C					3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

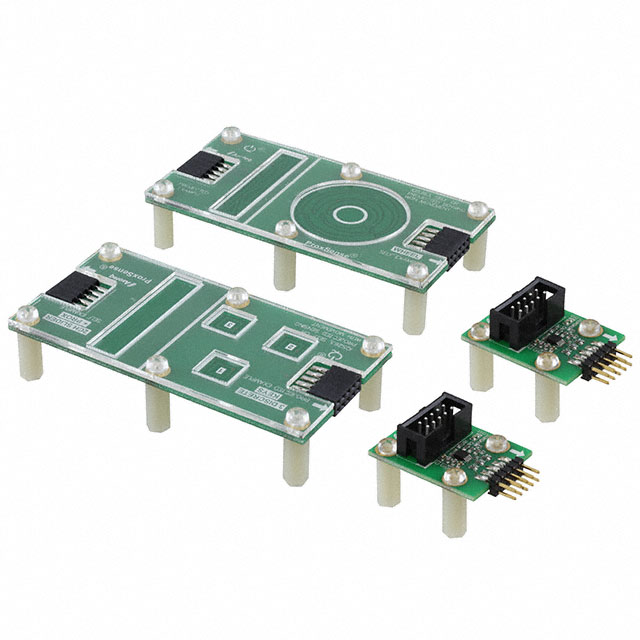

IQS263 IQ Switch®, ProxSense® Touch, Capacitive Sensor Evaluation Board
