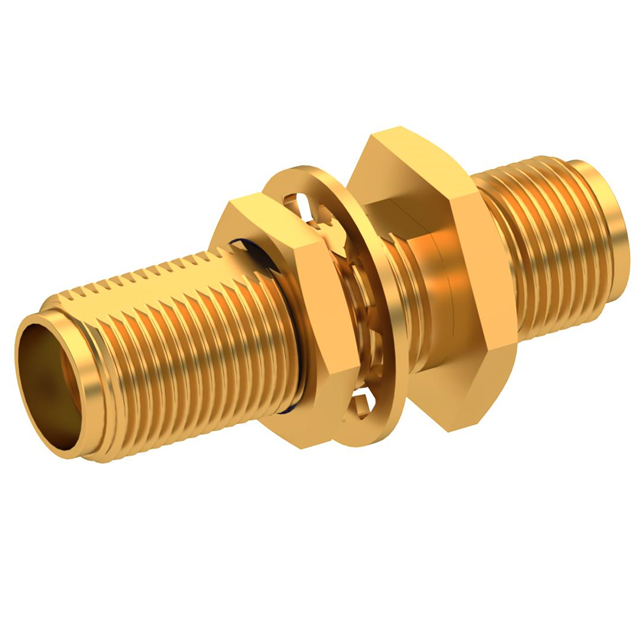

5909-1103-000

Active

Radiall USA, Inc.

SMA FF STR BHD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA FF STR BHD

Technical Specifications

Parameters and characteristics for this part

Specification	5909-1103-000

Adapter Series	SMA to SMA
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Style	Straight

Part	Frequency - Max [Max]	Center Contact Material	Body Finish	Mounting Feature	Style	Convert From (Adapter End)	Center Gender	Conversion Type	Mating Cycles	Body Material	Impedance	Center Contact Plating	Adapter Type	Convert To (Adapter End)	Dielectric Material	Adapter Series
Radiall USA, Inc. 5909-1103-000	18 GHz	Beryllium Copper	Gold	Bulkhead	Straight	Female Socket SMA Jack	Female to Female	Same Series	500	Stainless Steel	50 Ohms	Gold	Jack to Jack	Female Socket SMA Jack	Polytetrafluoroethylene (PTFE)	SMA to SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
