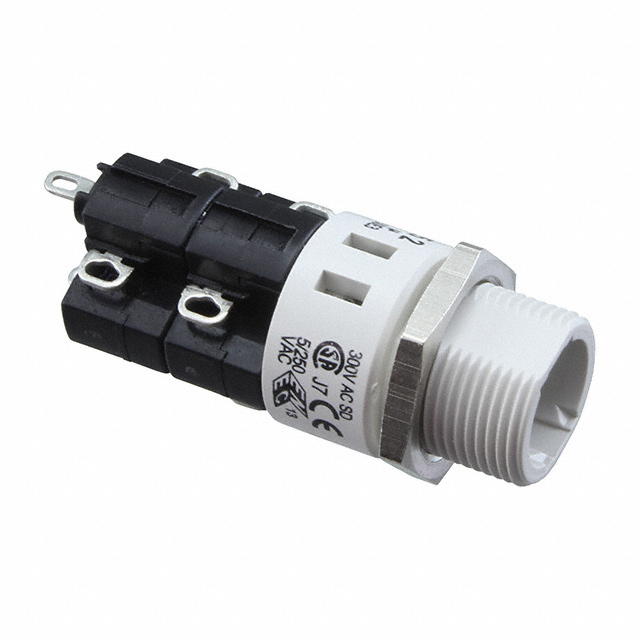

11-132.825

Obsolete

EAO

SWITCH PB DPDT 5A 250V

Search across all available documentation for this part.

Obsolete

EAO

SWITCH PB DPDT 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	11-132.825

Actuator Marking	No Marking
Actuator Type	Round, Button (Not Included)
Circuit	DPDT (DB/DM)
Current Rating (Amps)	2 A, 5 A
Mounting Type	Panel Mount, Rear
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	250 V
Voltage Rating - DC	24 V

Part	Termination Style	Actuator Marking	Panel Cutout Dimensions [diameter]	Type	Voltage Rating - DC	Mounting Type	Circuit	Switch Function	Actuator Type	Current Rating (Amps)	Voltage Rating - AC
EAO 11-132.825	Solder Lug	No Marking	16 mm	Standard	24 V	Panel Mount Rear	DPDT (DB/DM)	On-Mom	Round Button (Not Included)	2 A 5 A	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 88.70

General part information

Pushbutton Switch DPDT (DB/DM) Standard Panel Mount, Rear
