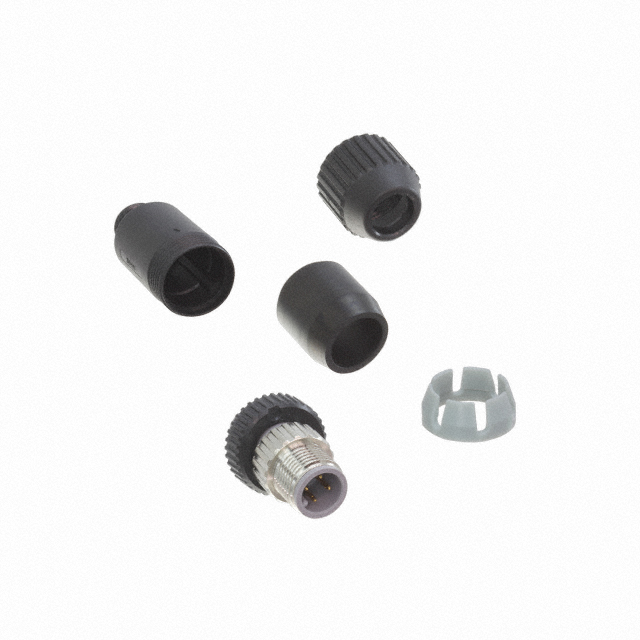

XS2GD4S9
ActiveOmron Electronics Inc-EMC Div
CONN PLUG MALE 4POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
XS2GD4S9
ActiveOmron Electronics Inc-EMC Div
CONN PLUG MALE 4POS GOLD SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XS2GD4S9 |
|---|---|
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Cable Opening [Max] [diameter] | 0.276 in |
| Cable Opening [Max] [diameter] | 7 mm |
| Cable Opening [Min] [diameter] | 0.236 in |
| Cable Opening [Min] [diameter] | 6 mm |
| Color | Black, Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 16 Áin |
| Contact Finish Thickness - Mating | 0.41 Ám |
| Contact Material | Brass |
| Current Rating (Amps) | 3 A |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M12-4 |
| Termination | Screw |
| Voltage Rating | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.76 | |
| 10 | $ 18.18 | |||
| 25 | $ 17.39 | |||
| 50 | $ 16.83 | |||
| 100 | $ 16.27 | |||
| 250 | $ 15.37 | |||
| 500 | $ 14.92 | |||
Description
General part information
XS2GD4 Series
4 Position Circular Connector Plug, Male Pins Screw
