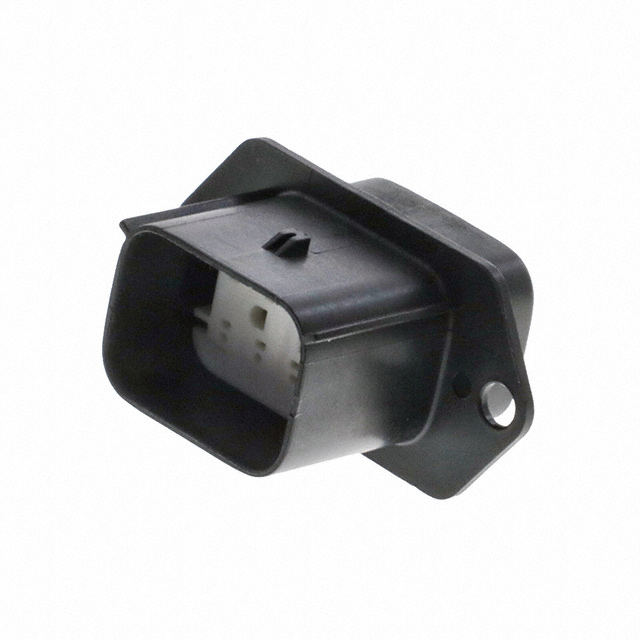

0194290045

Active

Molex

CONN PLUG HSG 8POS 5.84MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMX150 Series MX150L Series Assembly Instr

0194290045

Active

Molex

CONN PLUG HSG 8POS 5.84MM

Deep-Dive with AI

DocumentsMX150 Series MX150L Series Assembly Instr

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0194290045

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Blade
Fastening Type	Locking Ramp
Features	Gasket
Insulation Material	Polyester, Glass Filled, Polybutylene Terephthalate (PBT)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5.84 mm
Pitch [x]	0.23 in

019429 Series

Part	Features	Contact Termination	Fastening Type	Note	Pitch [x]	Pitch [x]	Insulation Material	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Type	Row Spacing [Max]	Row Spacing [Max]	Connector Type	Number of Positions
Molex 0194290009	IP67	Crimp	Locking Ramp	Contacts Not Included	5.84 mm	0.23 in	Polybutylene Terephthalate (PBT) Polyester Glass Filled	2	4	-40 °C	120 °C	Black	Male Blade	0.236 in	6 mm	Plug
Molex 0194290048		Crimp	Locking Ramp	Contacts Not Included	5.84 mm	0.23 in	Polybutylene Terephthalate (PBT) Polyester Glass Filled	2		-40 °C	120 °C	Black	Male Blade			Plug	16
Molex 0194290025		Crimp	Locking Ramp	Contacts Not Included	5.84 mm	0.23 in	Polybutylene Terephthalate (PBT) Polyester Glass Filled	2	4	-40 °C	120 °C	Black	Male Blade			Plug
Molex 0194290037	Gasket IP67	Crimp	Locking Ramp	Contacts Not Included	5.84 mm	0.23 in	Polybutylene Terephthalate (PBT) Polyester Glass Filled	2	8	-40 °C	120 °C	Black	Male Blade	0.236 in	6 mm	Plug
Molex 0194290046	Gasket	Crimp	Locking Ramp	Contacts Not Included	5.84 mm	0.23 in	Polybutylene Terephthalate (PBT) Polyester Glass Filled	2	10	-40 °C	120 °C	Black	Male Blade			Plug
Molex 0194290029		Crimp	Locking Ramp	Contacts Not Included	5.84 mm	0.23 in	Polybutylene Terephthalate (PBT) Polyester Glass Filled	2	8	-40 °C	120 °C	Black	Male Blade			Plug
Molex 0194290045	Gasket	Crimp	Locking Ramp	Contacts Not Included	5.84 mm	0.23 in	Polybutylene Terephthalate (PBT) Polyester Glass Filled	2	8	-40 °C	120 °C	Black	Male Blade			Plug
Molex 0194290030		Crimp	Locking Ramp	Contacts Not Included	5.84 mm	0.23 in	Polybutylene Terephthalate (PBT) Polyester Glass Filled	2	10	-40 °C	120 °C	Black	Male Blade			Plug
Molex 0194290028		Crimp	Locking Ramp	Contacts Not Included	5.84 mm	0.23 in	Polybutylene Terephthalate (PBT) Polyester Glass Filled	2	6	-40 °C	120 °C	Black	Male Blade			Plug
Molex 0194290039	Gasket IP67	Crimp	Locking Ramp	Contacts Not Included	5.84 mm	0.23 in	Polybutylene Terephthalate (PBT) Polyester Glass Filled	2	12	-40 °C	120 °C	Black	Male Blade	0.236 in	6 mm	Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1152	$ 2.90

Description

General part information

019429 Series

8 Rectangular Connectors - Housings Plug Black 0.230" (5.84mm)

Documents

Technical documentation and resources

MX150 Series

Datasheet

MX150L Series Assembly Instr

Datasheet
