QBL7YG80D-MP8B2
ActiveQT Brightek (QTB)

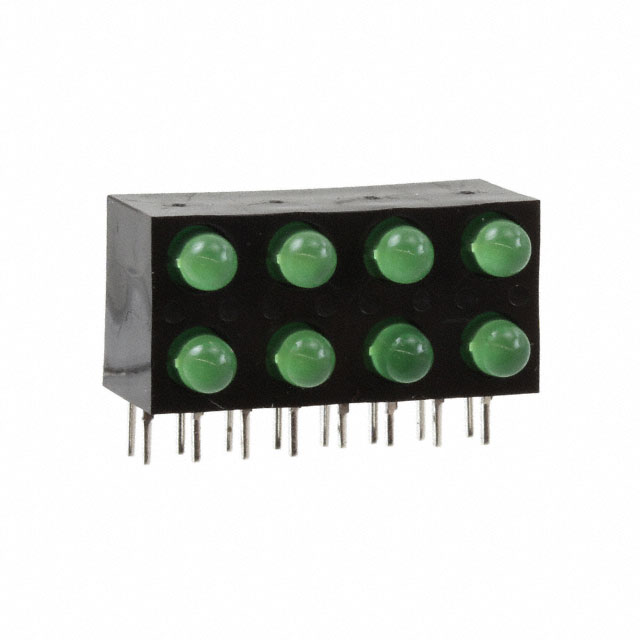

LED CBI 3MM 2X4 GRN DIFF RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBL7YG80D-MP8B2
ActiveQT Brightek (QTB)
LED CBI 3MM 2X4 GRN DIFF RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBL7YG80D-MP8B2 |
|---|---|
| Color | Green (x 8) |
| Configuration [y] | 4 |
| Configuration [z] | 2 |
| Current | 30 mA |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Type | Diffused |
| Millicandela Rating | 30 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 80 ° |
| Voltage Rating | 2 V |
| Wavelength - Peak | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.92 | |
| 10 | $ 2.89 | |||
| 120 | $ 2.24 | |||
| 480 | $ 2.01 | |||
| 960 | $ 1.93 | |||
| 2040 | $ 1.85 | |||
| 4920 | $ 1.77 | |||
Description
General part information
QBL7YG80 Series
LED Circuit Board Indicator LED Circuit Board Indicator 2 High x 4 Wide Green (x 8) Diffused 2V 30mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Documents
Technical documentation and resources
