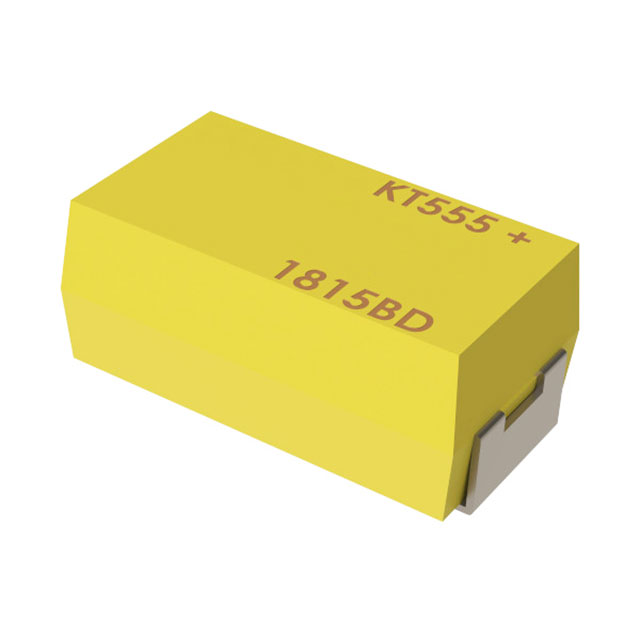

T555B506M025AT

Active

KEMET

50UF 25V 170MΩ@100KHZ ±20% TANTALUM CAPACITORS ROHS HIGHER VOLTAGE RATINGS AND TIGHTER TOLERANCE PRODUCT INCLUDING ESR MAY BE SUBSTITUTED WITHIN THE SAME SIZE AT KEMET&#X27;S OPTION. VOLTAGE SUBSTITUTION WILL BE MARKED WITH THE HIGHER VOLTAGE RATING. SUBSTITUTIONS CAN INCLUDE BETTER THAN SERIES.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT555B506M025AT Spec Datasheet

T555B506M025AT

Active

KEMET

Deep-Dive with AI

DocumentsT555B506M025AT Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T555B506M025AT

Capacitance	50 µF
ESR (Equivalent Series Resistance)	170 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	9.6 mm
Height - Seated (Max) [Max] [z]	0.378 "
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	B
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Size / Dimension [x]	0.965 "
Size / Dimension [x]	24.5 mm
Size / Dimension [y]	8.5 mm
Size / Dimension [y]	0.335 in
Tolerance	20 %
Type	Hermetically Sealed
Voltage - Rated	25 VDC

T555B Series

Part	Voltage - Rated	Lifetime @ Temp.	Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Capacitance	Manufacturer Size Code	ESR (Equivalent Series Resistance)
KEMET T555B127M050AT	50 VDC	2000 Hrs	General Purpose	Hermetically Sealed	105 ░C	-55 °C	Nonstandard	20 %	8.5 mm	0.965 "	0.335 in	24.5 mm	9.6 mm	0.378 "	Surface Mount	120 µF	B	90 mOhm
KEMET T555B826K075AH	75 V	2000 Hrs	General Purpose	Hermetically Sealed	105 ░C	-55 °C	Nonstandard	10 %	8.5 mm	0.965 "	0.335 in	24.5 mm	9.6 mm	0.378 "	Surface Mount	82 µF	B	220 mOhm
KEMET T555B206K060AT	60 V	2000 Hrs	General Purpose	Hermetically Sealed	105 ░C	-55 °C	Nonstandard	10 %	8.5 mm	0.965 "	0.335 in	24.5 mm	9.6 mm	0.378 "	Surface Mount	20 µF	B	200 mOhm
KEMET T555B147K006AT	6.3 V	2000 Hrs	General Purpose	Hermetically Sealed	105 ░C	-55 °C	Nonstandard	10 %	8.5 mm	0.965 "	0.335 in	24.5 mm	9.6 mm	0.378 "	Surface Mount	140 µF	B	120 mOhm
KEMET T555B107K010AH	10 V	2000 Hrs	General Purpose	Hermetically Sealed	105 ░C	-55 °C	Nonstandard	10 %	8.5 mm	0.965 "	0.335 in	24.5 mm	9.6 mm	0.378 "	Surface Mount	100 µF	B	140 mOhm
KEMET T555B107M040AT	40 V	2000 Hrs	General Purpose	Hermetically Sealed	105 ░C	-55 °C	Nonstandard	20 %	8.5 mm	0.965 "	0.335 in	24.5 mm	9.6 mm	0.378 "	Surface Mount	100 µF	B	150 mOhm
KEMET T555B506M025AT	25 VDC	2000 Hrs	General Purpose	Hermetically Sealed	105 ░C	-55 °C	Nonstandard	20 %	8.5 mm	0.965 "	0.335 in	24.5 mm	9.6 mm	0.378 "	Surface Mount	50 µF	B	170 mOhm
KEMET T555B187M010AH	10 V	2000 Hrs	General Purpose	Hermetically Sealed	105 ░C	-55 °C	Nonstandard	20 %	8.5 mm	0.965 "	0.335 in	24.5 mm	9.6 mm	0.378 "	Surface Mount	180 çF	B	110 mOhm
KEMET T555B506K025AH	25 VDC	2000 Hrs	General Purpose	Hermetically Sealed	105 ░C	-55 °C	Nonstandard	10 %	8.5 mm	0.965 "	0.335 in	24.5 mm	9.6 mm	0.378 "	Surface Mount	50 µF	B	170 mOhm
KEMET T555B397K015AH	15 V	2000 Hrs	General Purpose	Hermetically Sealed	105 ░C	-55 °C	Nonstandard	10 %	8.5 mm	0.965 "	0.335 in	24.5 mm	9.6 mm	0.378 "	Surface Mount	390 µF	B	90 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 43.07
LCSC	Piece	1	$ 47.04
		200	$ 18.21
		500	$ 17.57
		1000	$ 17.25

Description

General part information

T555B Series

50 µF Hermetically Sealed Tantalum Polymer Capacitor 25 V Nonstandard 170mOhm @ 100kHz

Documents

Technical documentation and resources

T555B506M025AT Spec

Datasheet
