9301-7063-009

Active

Radiall USA, Inc.

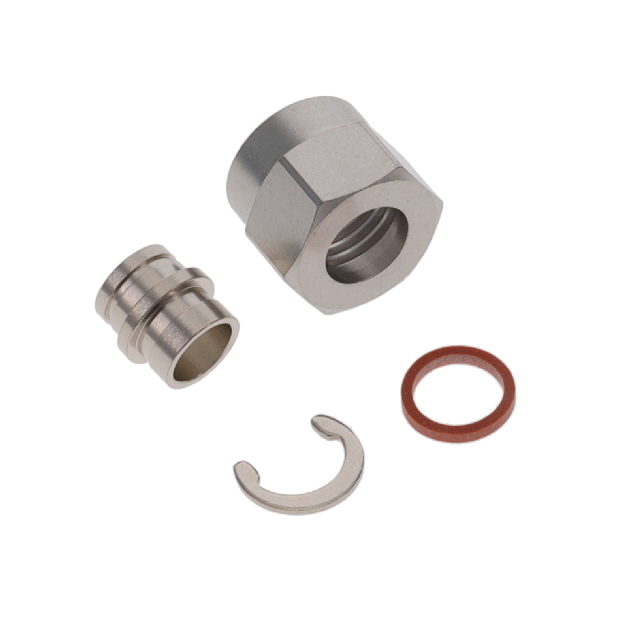

SMA F STR NA SD 2.6/50D

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA F STR NA SD 2.6/50D

Technical Specifications

Parameters and characteristics for this part

Specification	9301-7063-009

Body Finish	Nickel
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Body Finish	Center Contact Plating	Shield Termination	Voltage Rating	Number of Ports	Mounting Type	Frequency - Max [Max]	Dielectric Material	Contact Termination	Connector Type	Connector Style	Housing Color	Mating Cycles	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Center Contact Material
Radiall USA, Inc. 9301-7063-009	Nickel	Gold	Solder	500 V	1	Free Hanging (In-Line)	18 GHz	Polytetrafluoroethylene (PTFE)	Solder	Female Socket Jack	SMA	Silver	500	Stainless Steel	-65 ░C	105 ░C	50 Ohms	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
