Q-31056000H108I

Active

Amphenol Custom Cable

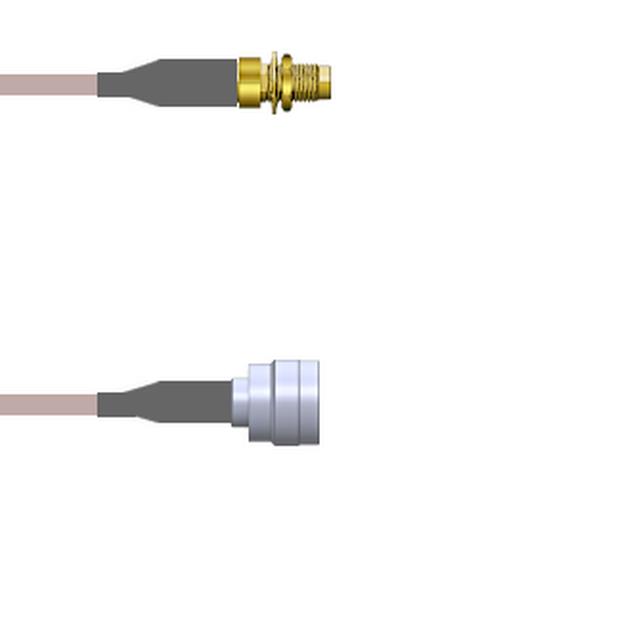

COAX CABLE SMA TO TNC 9'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE SMA TO TNC 9'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-31056000H108I

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-142
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMA to TNC

Part	Frequency - Max [Max]	2nd Connector Mounting Type	1st Connector Mounting Feature	Cable Type	2nd Contact Gender	1st Contact Gender	1st Connector Mounting Type	Connector Impedance	Length	Length	Length	1st Connector	Style	Features	2nd Connector	Overall Impedance	Color	Cable Impedance
Amphenol Custom Cable Q-31056000H108I	11 GHz	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-142	Male	Female	Panel Mount	50 Ohms	2.7 m	9 ft	108 in	SMA Jack	SMA to TNC	Shielded	TNC Plug	50 Ohms	Copper	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to TNC RG-142 108.0" (2.7m) 9.0'

Technical documentation and resources

No documents available
