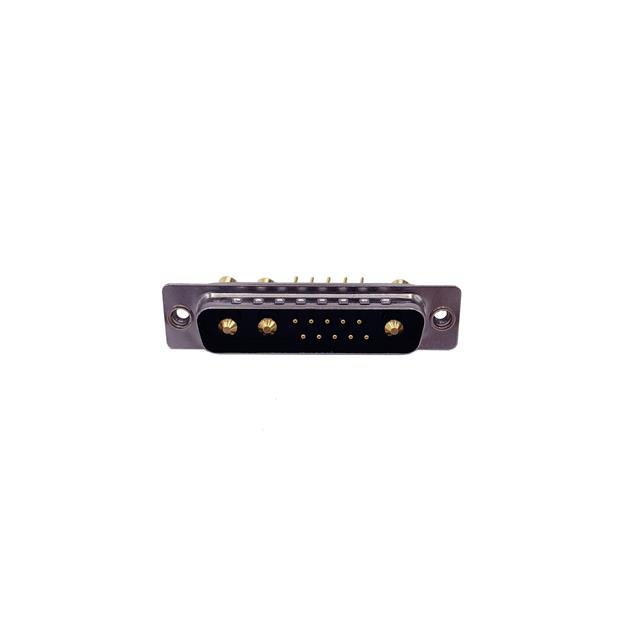

681M13W3103L141

Active

MH Connectors

CONN D-SUB PLUG 13P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

681M13W3103L141

Active

MH Connectors

CONN D-SUB PLUG 13P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	681M13W3103L141

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Board Lock
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	10
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	250 VDC

681M13W Series

Part	Contact Finish Thickness	Dielectric Material	Number of Rows	Flange Feature	Connector Type	Contact Material	Contact Finish	Material Flammability Rating	Mounting Type	Features	Number of Positions [custom]	Number of Positions [custom]	Shell Material, Finish	Color	Termination	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Style	Contact Type	Voltage Rating	Number of Positions
MH Connectors 681M13W3103L001	Flash	Polybutylene Terephthalate (PBT)	2	Housing/Shell (Unthreaded)	Male Pins Plug	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole	Grounding Indents	10	3	Nickel Plated Steel	Black	Solder	5 A 40 A	155 °C	-55 °C	13C3 13W3 B DB	3	Combo D-Sub	Signal and Power
MH Connectors 681M13W3103L141	Flash	Polybutylene Terephthalate (PBT)	2	4-40 Board Side	Male Pins Plug	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole	Board Lock Grounding Indents	10	3	Nickel Plated Steel	Black	Solder	5 A 40 A	125 °C	-55 °C	13C3 13W3 B DB	3	Combo D-Sub	Signal and Power	250 VDC
MH Connectors 681M13W6203L001	Flash	Polybutylene Terephthalate (PBT)	2	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole			6	Nickel Plated Steel	Black	Solder	5 A 40 A	125 °C	-55 °C	13W6 4 (DC C)		Combo D-Sub	Signal and Power		13
MH Connectors 681M13W6103L001	Flash	Polybutylene Terephthalate (PBT)	2	Housing/Shell (Unthreaded)	Male Pins Plug	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole	Grounding Indents		6	Nickel Plated Steel	Black	Solder	5 A 40 A	125 °C	-55 °C	13W6 4 (DC C)		Combo D-Sub	Signal and Power		13
MH Connectors 681M13W3203L151	Flash	Polybutylene Terephthalate (PBT)	2	4-40 Board Side	Receptacle Female Sockets	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole		10	3	Nickel Plated Steel	Black	Solder	5 A 40 A	125 °C	-55 °C	13C3 13W3 B DB	3	Combo D-Sub	Signal and Power	250 VDC
MH Connectors 681M13W3203L111	Flash	Polybutylene Terephthalate (PBT)	2	4-40 Board Side	Receptacle Female Sockets	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole		10	3	Nickel Plated Steel	Black	Solder	5 A 40 A	125 °C	-55 °C	13C3 13W3 B DB	3	Combo D-Sub	Signal and Power	250 VDC
MH Connectors 681M13W3103L051	Flash	Polybutylene Terephthalate (PBT)	2	4-40 Board Side	Male Pins Plug	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole	Board Lock Grounding Indents	10	3	Nickel Plated Steel	Black	Solder	5 A 40 A	125 °C	-55 °C	13C3 13W3 B DB	3	Combo D-Sub	Signal and Power

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.56
		10	$ 8.89
		25	$ 8.04
		40	$ 7.79

Description

General part information

681M13W Series

13 (10 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector
