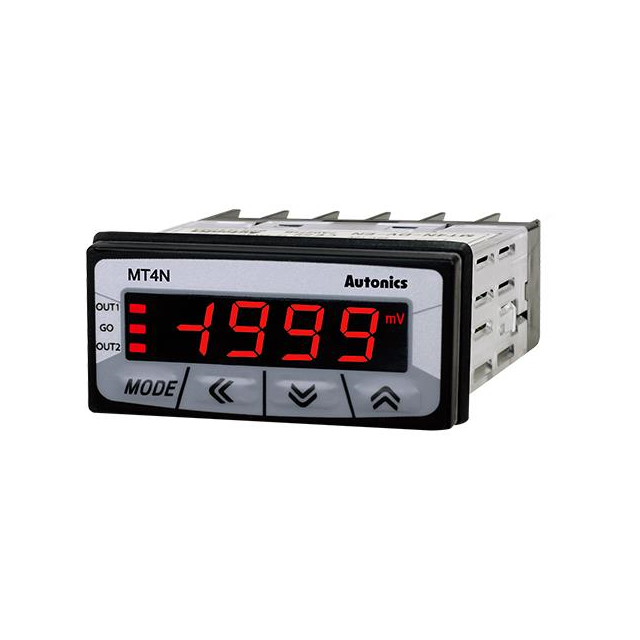

MT4N-DV-E2

Active

AUTONICS

DC VOLT 0-50V PNP 12-24VDC/AC

Search across all available documentation for this part.

Active

AUTONICS

DC VOLT 0-50V PNP 12-24VDC/AC

Technical Specifications

Parameters and characteristics for this part

Specification	MT4N-DV-E2

Display Characters - Height [z]	9 mm
Display Characters - Height [z]	0.354 "
Display Type	LED - Red Characters
Measuring Range [Max]	50 VDC
Measuring Range [Min]	0
Measuring Type	Voltage
Number of Characters Per Row	4
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	45 mm
Panel Cutout Dimensions [y]	22.2 mm
Termination Style	Screw Terminal
Type	Voltmeter
Voltage - Supply [Max]	24 VAC
Voltage - Supply [Min]	12 VAC

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Characters - Height [z]	Display Characters - Height [z]	Measuring Type	Number of Characters Per Row	Termination Style	Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Measuring Range [Max]	Measuring Range [Min]	Display Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
AUTONICS MT4N-DV-EN	24 VAC	12 VAC	9 mm	0.354 "	Voltage	4	Screw Terminal	Voltmeter	22.2 mm	45 mm	50 VDC	0 V	LCD - Red Characters Backlight
AUTONICS MT4N-DV-E2	24 VAC	12 VAC	9 mm	0.354 "	Voltage	4	Screw Terminal	Voltmeter	22.2 mm	45 mm	50 VDC	0	LED - Red Characters	-10 °C	50 °C
AUTONICS MT4N-DV-E3	24 VAC	12 VAC	9 mm	0.354 "	Voltage	4	Screw Terminal	Voltmeter	22.2 mm	45 mm	50 VDC	0 V	LCD - Red Characters Backlight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 215.00

General part information

Voltmeter LED - Red Characters Display Panel Mount
