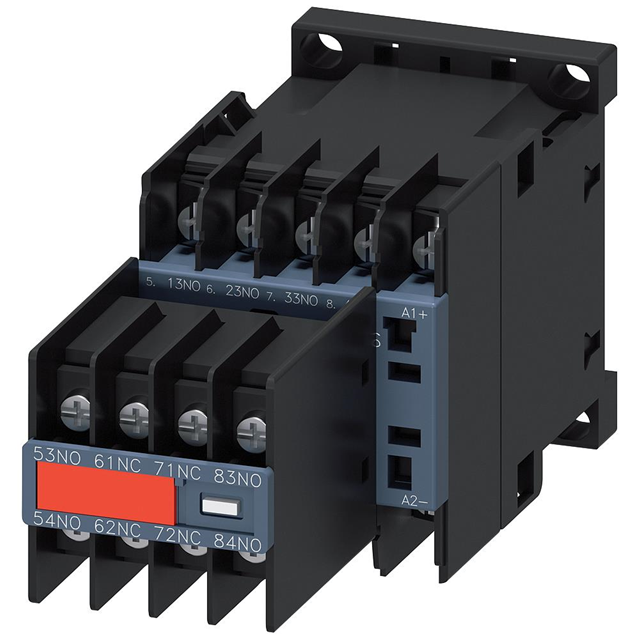

3RH22624BB40

Active

Siemens

CONTROL RELAY 6NO+2NC DC 24V RIN

Search across all available documentation for this part.

Active

Siemens

CONTROL RELAY 6NO+2NC DC 24V RIN

Technical Specifications

Parameters and characteristics for this part

Part	Must Operate Voltage	Termination Style	Features	Coil Power	Operate Time	Contact Form	Release Time	Contact Rating (Current)	Coil Voltage	Switching Voltage	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Siemens 3RH22624BB40	19.2 VDC	Screw Terminal	Auxiliary Contacts	4 W	100 ms	8PST-6NO/2NC (6 Form A 2 Form B)	13 ms	10 A	24 VDC	690 VAC	Chassis Mount DIN Rail	-25 °C	60 °C
Siemens 3RH22624AK60	102 VAC	Screw Terminal	Auxiliary Contacts	37 VA	33 ms	8PST-6NO/2NC (6 Form A 2 Form B)	15 ms	10 A	120 VAC	690 VAC	Chassis Mount DIN Rail	-25 °C	60 °C
Siemens 3RH22624AP60	204 VAC	Screw Terminal	Auxiliary Contacts	37 VA	33 ms	8PST-6NO/2NC (6 Form A 2 Form B)	15 ms	10 A	240 VAC	690 VAC	Chassis Mount DIN Rail	-25 °C	60 °C
Siemens 3RH22624BG40	100 VDC	Screw Terminal	Auxiliary Contacts	4 W	100 ms	8PST-6NO/2NC (6 Form A 2 Form B)	13 ms	10 A	125 VDC	690 VAC	Chassis Mount DIN Rail	-25 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 164.97
