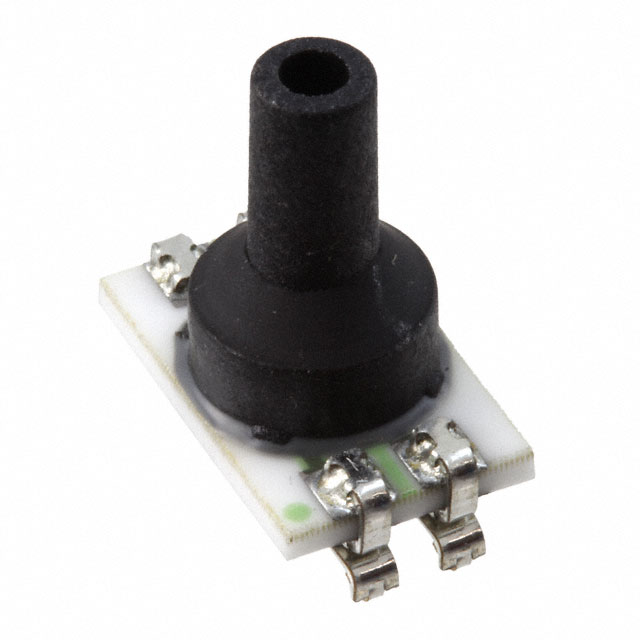

TBPMLNN060PGUCV
ObsoleteHoneywell Sensing and Productivity Solutions
SENSOR 60PSIG 0.13" .0065V 4SMT
Deep-Dive with AI
Search across all available documentation for this part.
TBPMLNN060PGUCV
ObsoleteHoneywell Sensing and Productivity Solutions
SENSOR 60PSIG 0.13" .0065V 4SMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TBPMLNN060PGUCV |
|---|---|
| Accuracy | 0.15 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 145 PSI |
| Maximum Pressure [Max] | 999.74 kPa |
| Mounting Type | Surface Mount |
| Operating Pressure | 60 PSI |
| Operating Pressure | 413.69 kPa |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 6.5 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 4-SMD, Top Port, J-Lead |
| Port Size [x] | 0.13 " |
| Port Size [x] | 3.18 mm |
| Port Style | Barbless |
| Pressure Type | Vented Gauge |
| Supplier Device Package | 4-SMT |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply [Max] | 12 V |
| Voltage - Supply [Min] | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 19.11 | |
Description
General part information
TBPMLNN Series
Pressure Sensor 60PSI (413.69kPa) Vented Gauge Male - 0.13" (3.18mm) Tube 0 mV ~ 6.5 mV (5V) 4-SMD, J-Lead, Top Port
