HLW7R-2C7LF
ActiveAmphenol ICC (FCI)

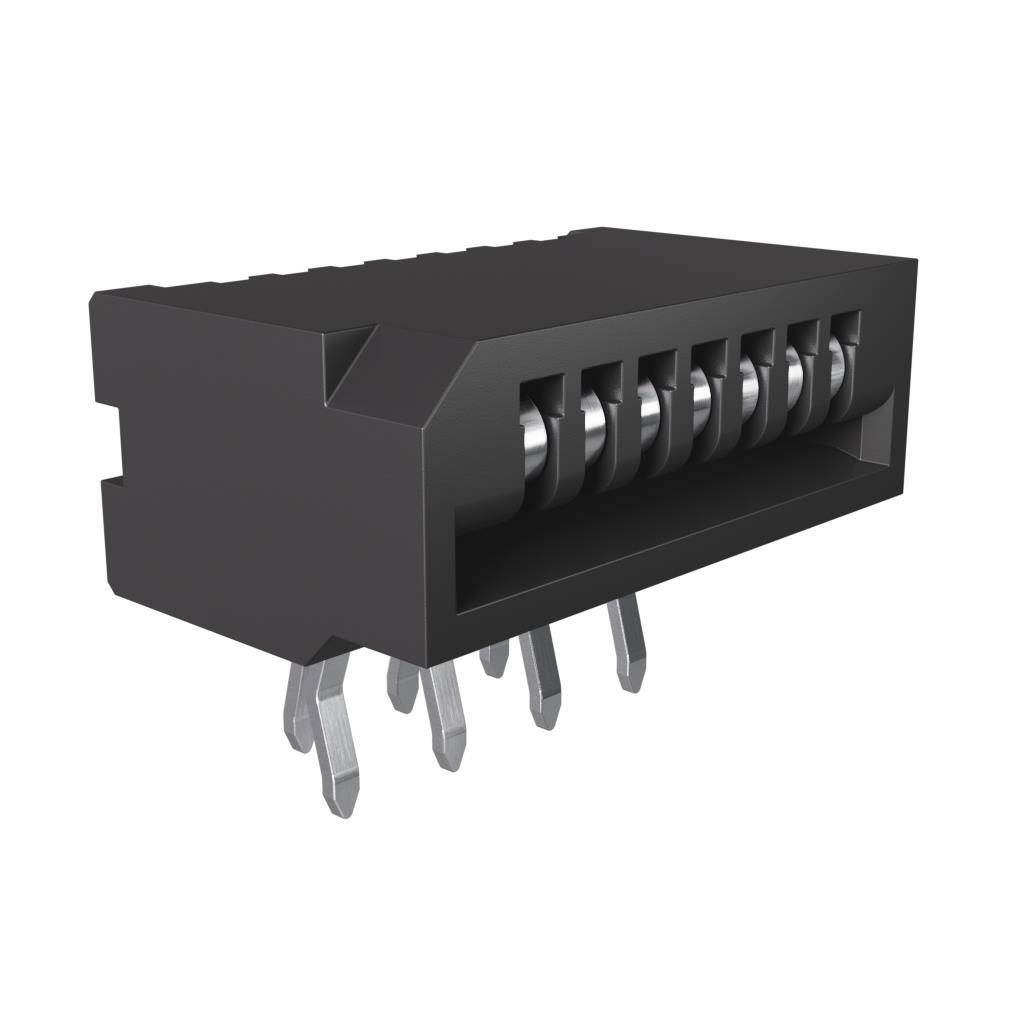

CONN FFC FPC TOP 7POS 1MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
HLW7R-2C7LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 7POS 1MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HLW7R-2C7LF |
|---|---|
| Actuator Color | Black |
| Cable End Type | Tapered, Straight |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness [z] | 0.33 mm, 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 0.154 in |
| Height Above Board | 3.9 mm |
| Housing Color | Black |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 30 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 7 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Kinked Pin |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.10 | |
| 10 | $ 0.08 | |||
| 25 | $ 0.07 | |||
| 40 | $ 0.06 | |||
| 80 | $ 0.06 | |||
| 230 | $ 0.05 | |||
| 440 | $ 0.05 | |||
| 945 | $ 0.04 | |||
| 2400 | $ 0.04 | |||
Description
General part information
HLW7R Series
7 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Through Hole, Right Angle
