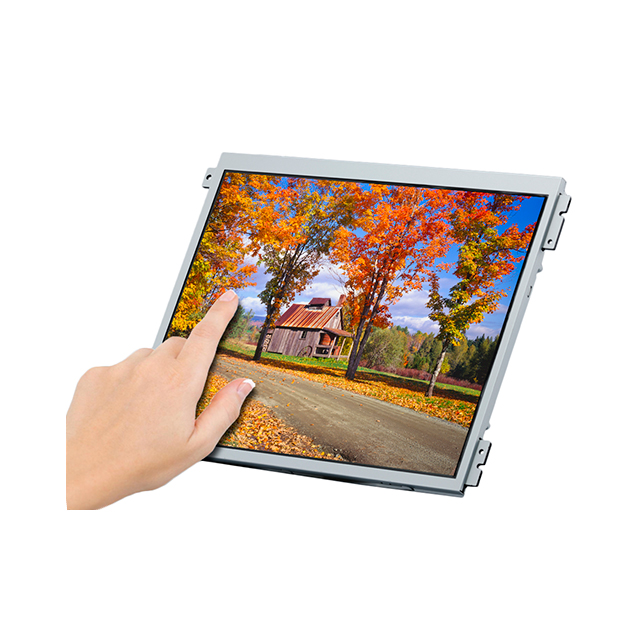

TCG121SVLPBAFA-AA00

Active

Kyocera International, Inc.

LCD TFT DISPLAY SVGA 12.1"

Search across all available documentation for this part.

Active

Kyocera International, Inc.

LCD TFT DISPLAY SVGA 12.1"

Technical Specifications

Parameters and characteristics for this part

Part	Backlight	Interface	Display Mode	Dot Pixels [y]	Dot Pixels [x]	Diagonal Screen Size	Diagonal Screen Size	Dot Pitch [x]	Dot Pitch [y]	Graphics Color	Viewing Area [y]	Viewing Area [x]	Display Type
Kyocera International, Inc. TCG121SVLQAPFA-AA20	LED	LVDS	Transmissive	600 pixels	800
Kyocera International, Inc. TCG121SVLQAPNN-AN20	LED - White	LVDS	Transmissive			12.1 in	307.34 mm	0.1 mm	0.31 mm	Blue Green Red	184.5 mm	246 mm	TFT - Color
Kyocera International, Inc. TCG121SVLPAANN-AN20	LED - White	LVDS	Transmissive			12.1 in	307.34 mm	0.1 mm	0.31 mm	Blue Green Red	184.5 mm	246 mm	TFT - Color
Kyocera International, Inc. TCG121SVLPBAFA-AA00	LED - White		Transmissive			12.1 in	307.34 mm	0.1 mm	0.31 mm	Blue Green Red	184.5 mm	246 mm	TFT - Color
Kyocera International, Inc. TCG121WXLPAPNN-AN20	LED - White	LVDS	Transmissive	800	1280	12.1 in	307.34 mm	0.07 mm	0.2 mm	Blue Green Red	163.2 mm	261.12 mm	TFT - Color
Kyocera International, Inc. TCG121XGLPBPNN-AN40	LED - White	LVDS	Transmissive	768	1024	12.1 in	307.34 mm	0.07 mm	0.2 mm	Blue Green Red	163.2 mm	261.12 mm	TFT - Color
Kyocera International, Inc. TCG121SVLPAAFA-AA20	LED - White	LVDS	Transmissive			12.1 in	307.34 mm	0.1 mm	0.31 mm	Blue Green Red	184.5 mm	246 mm	TFT - Color

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 433.91

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 18-Bit (RGB) 12.1" (307.34mm) 800 x 600 (SVGA)

Technical documentation and resources

No documents available
