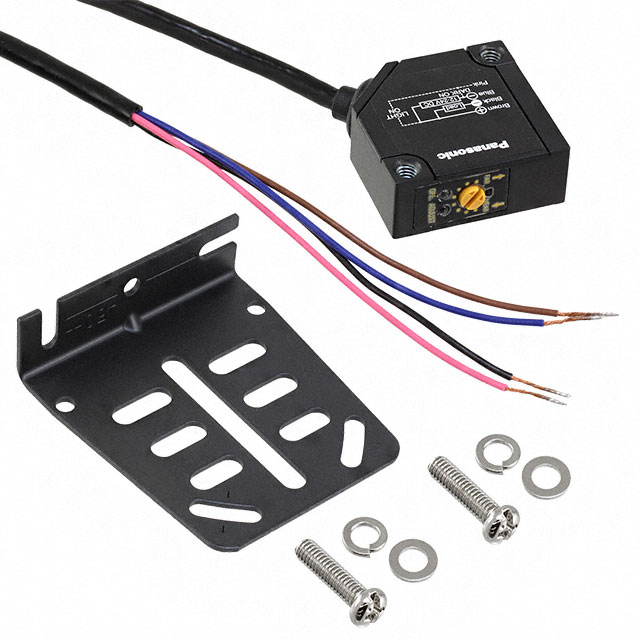

MQ-W3AR-DC12-24V

Obsolete

Panasonic Industrial Automation Sales

SENSOR REFLCTV 40MM NPN OPEN COL

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SENSOR REFLCTV 40MM NPN OPEN COL

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Cable Length	Cable Length	Voltage - Supply [Min]	Voltage - Supply [Max]	Light Source	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Method	Connection Method	Response Time	Output Configuration	Adjustment Type
Panasonic Industrial Automation Sales MQ-W3AR-DC12-24VEM	IP67	78.74 in	2 m	9.6 V	30 VDC	Red LED	1.575 in	40 mm	55 °C	-25 °C	Reflective	Cable	2 ms	NPN - Open Collector/Light-ON	Adjustable
Panasonic Industrial Automation Sales MQ-W3C-DC12-24V	IP67	78.74 in	2 m	12 V	24 V	Infrared	1.575 in	40 mm	55 °C	-25 °C	Reflective	Cable	2 ms	PNP - Open Collector	Adjustable
Panasonic Industrial Automation Sales MQ-W3AR-DC12-24V	IP67	78.74 in	2 m	12 V	24 V	Red LED	1.575 in	40 mm	55 °C	-25 °C	Reflective	Cable	2 ms	NPN - Open Collector	Adjustable
Panasonic Industrial Automation Sales MQ-W3C-DC12-24VEM	IP67	78.74 in	2 m	12 V	24 V	Infrared			55 °C	-25 °C	Reflective	Cable	2 ms	PNP - Open Collector	Adjustable
Panasonic Industrial Automation Sales MQ-W3C-DC12-24V-EM	IP67	78.74 in	2 m	12 V	24 V	Infrared	1.575 in	40 mm	55 °C	-25 °C	Reflective	Cable	2 ms	PNP - Open Collector	Adjustable
Panasonic Industrial Automation Sales MQ-W3CR-DC12-24VEM	IP67	78.74 in	2 m	9.6 V	30 VDC				55 °C	-25 °C	Reflective	Cable	2 ms	NPN - Open Collector/Light-ON	Adjustable
Panasonic Industrial Automation Sales MQ-W3A-DC12-24V	IP67	78.74 in	2 m	12 V	24 V	Infrared	1.575 in	40 mm	55 °C	-25 °C	Reflective	Cable	2 ms	NPN - Open Collector	Adjustable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Reflective Optical Sensor 1.575" (40mm) NPN - Open Collector
