Technical Specifications
Parameters and characteristics for this part
| Specification | TCN0MA1A |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 700 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -10 °C |
| Orientation | Top View |
| Package / Case | Star Array |
| Type | Ultraviolet (UV) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.5 V |
| Wavelength | 405 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TCN0MA1 Series

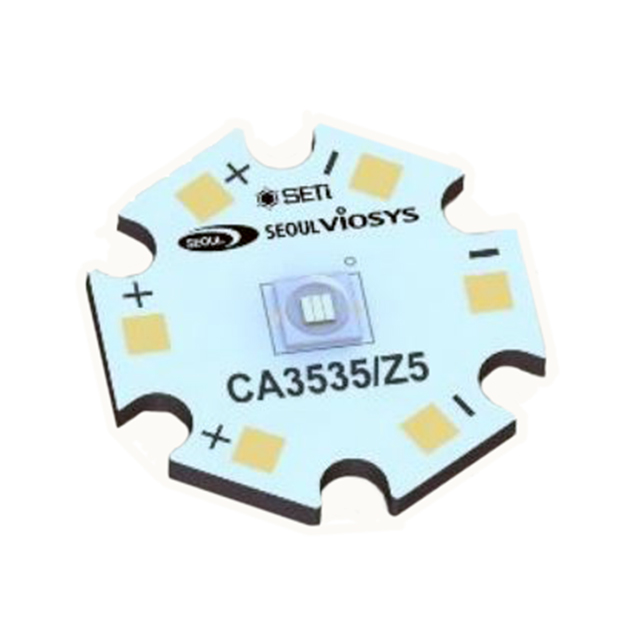

Ultraviolet (UV) Emitter 405nm 3.5V 700mA 120° Star Array
