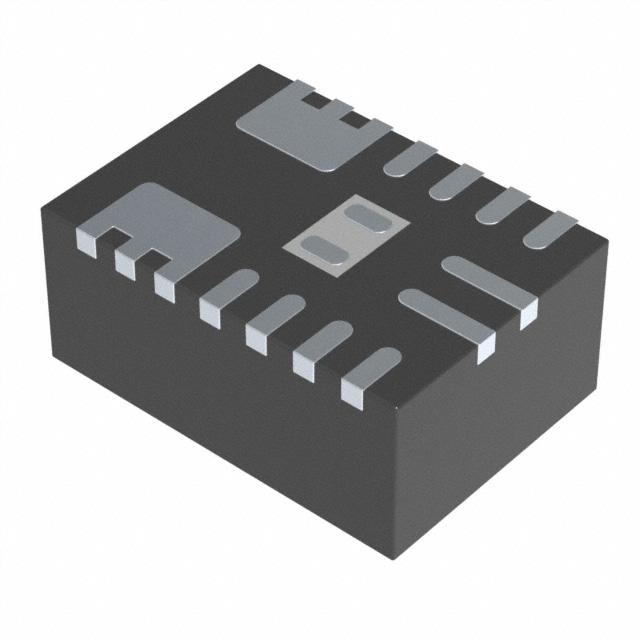

MPM3833CGRH-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
DC DC CONVERTER 0.6-6V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPM3833CGRH-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
DC DC CONVERTER 0.6-6V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPM3833CGRH-P |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 3 A |
| Features | UVLO, OCP, SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Package / Case | 18-PowerLFQFN Module |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [x] | 0.14 " |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.1 in |
| Size / Dimension [z] | 0.06 " |
| Size / Dimension [z] | 1.6 mm |
| Supplier Device Package | 18-QFN (2.5x3.5) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 6 V |
| Voltage - Input (Min) [Min] | 2.75 V |
| Voltage - Output 1 [Max] | 6 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.08 | |
| 10 | $ 2.76 | |||
| 25 | $ 2.61 | |||
| 100 | $ 2.26 | |||
| 250 | $ 2.15 | |||
| Digi-Reel® | 1 | $ 3.08 | ||
| 10 | $ 2.76 | |||
| 25 | $ 2.61 | |||
| 100 | $ 2.26 | |||
| 250 | $ 2.15 | |||
| Tape & Reel (TR) | 500 | $ 1.93 | ||
| 1000 | $ 1.63 | |||
| 2500 | $ 1.54 | |||
| 5000 | $ 1.49 | |||
Description
General part information
MPM3833 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 6V 3A 2.75V - 6V Input
