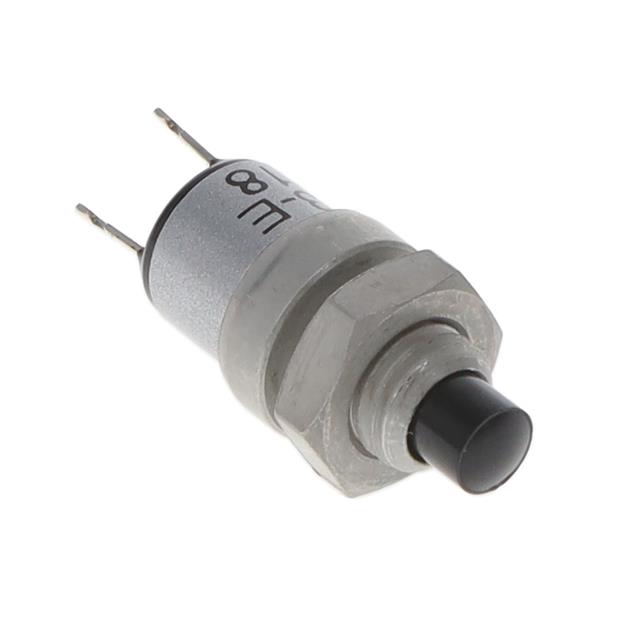

30-3-E

Unknown

Grayhill Inc.

SWITCH PUSH SPST-NO 1A 115V

Search across all available documentation for this part.

Unknown

Grayhill Inc.

SWITCH PUSH SPST-NO 1A 115V

Technical Specifications

Parameters and characteristics for this part

Specification	30-3-E

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	1 A
Electrical Life	1000000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	6.75 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	115 V

Pushbutton Switches PUSHBTN SWITCH

Part	Color - Actuator/Cap	Termination Style	Features	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Voltage Rating - AC	Actuator Marking	Panel Cutout Dimensions [diameter]	Type	Electrical Life	Mounting Type	Actuator Type
Grayhill Inc. 30-3-EW	Black	Wire Leads	Epoxy Sealed Terminals	Off-Mom	85 °C	-40 °C	SPST-NO	1 A	115 V	No Marking	6.75 mm	Standard	1000000 Cycles	Panel Mount Rear	Round Plunger
Grayhill Inc. 30-3-E	Black	Solder Lug	Epoxy Sealed Terminals	Off-Mom	85 °C	-40 °C	SPST-NO	1 A	115 V	No Marking	6.75 mm	Standard	1000000 Cycles	Panel Mount Rear	Round Plunger

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switches PUSHBTN SWITCH
