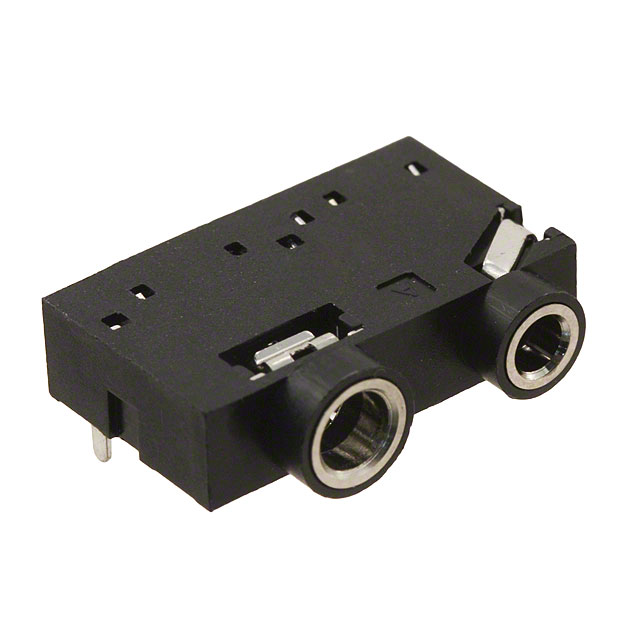

SJD1-3201-54
ActiveCUI Devices
CONN JACK DUAL STEREO 2.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SJD1-3201-54
ActiveCUI Devices
CONN JACK DUAL STEREO 2.5MM R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SJD1-3201-54 |
|---|---|
| Actual Diameter [diameter] | 0.102 ", 0.142 " |
| Actual Diameter [diameter] | 3.6 mm, 2.6 mm |
| Body Color | Black |
| Connector Type | Phone Jack, Dual |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating | Tin |
| Current Rating (Amps) | 1 A |
| Features | Board Guide |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter | 3 /32" |
| Industry Recognized Mating Diameter | 2.5 mm |
| Industry Recognized Mating Diameter | Sub Mini, Miniature |
| Internal Switch(s) | Single Switch, Two Switches |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 2 Sets of 3 Conductors, 9 Contacts |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.02 | |
| 10 | $ 1.76 | |||
| 25 | $ 1.69 | |||
| 40 | $ 1.65 | |||
| 100 | $ 1.57 | |||
| 300 | $ 1.42 | |||
| 500 | $ 1.31 | |||
| 1000 | $ 1.12 | |||
| 2400 | $ 1.05 | |||
Description
General part information
SJD1-32 Series
2.50mm (3/32", Sub Mini, Miniature) - Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Solder
