02K80A-40ML5
ObsoleteRosenberger

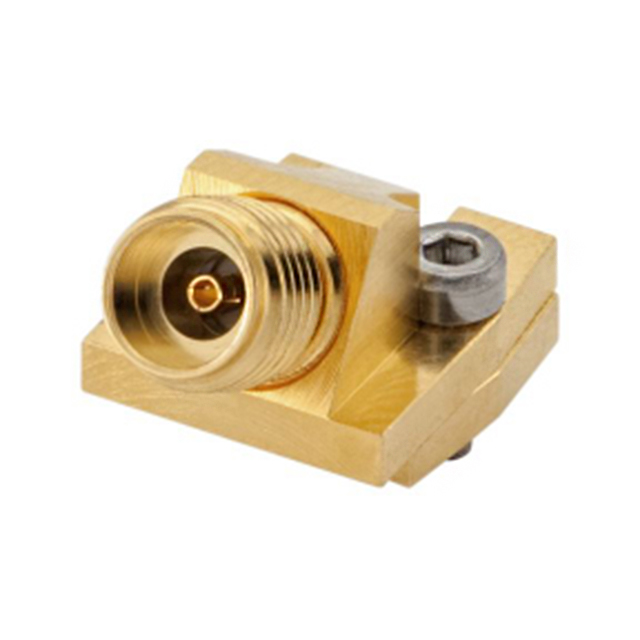

CONN RPC2.92 JACK R/A 50OHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 02K80A-40ML5 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 2.92 mm |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Features | Mounting Hardware |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Includes | 2 Screws, 1 Connector |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Screw |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
02K80A Series
2.92mm Connector Jack, Female Socket 50 Ohms Surface Mount, Right Angle Solder
