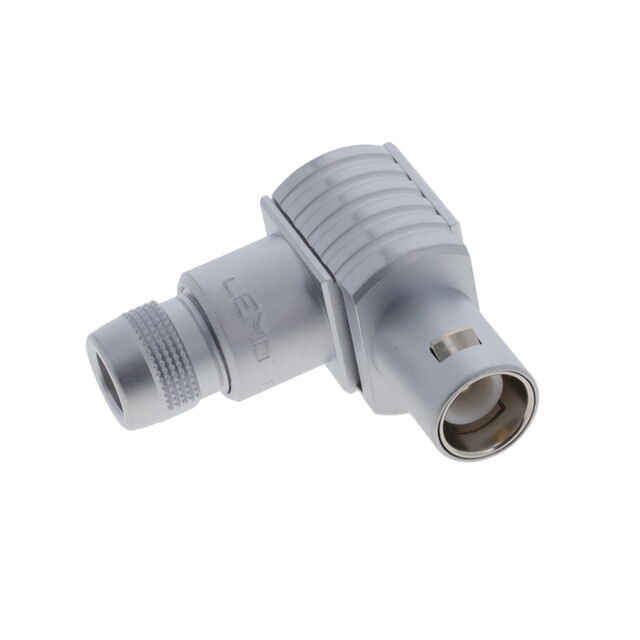

FLA.1S.250.CTAC52

Active

LEMO

CONN COAX PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Coaxial, Triaxial, Multi Catalog

FLA.1S.250.CTAC52

Active

LEMO

CONN COAX PLUG R/A 50 OHM SOLDER

Deep-Dive with AI

DocumentsDatasheet Coaxial, Triaxial, Multi Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FLA.1S.250.CTAC52

Body Finish	Chrome
Body Material	Brass
Cable Group	174A, 188A, 196A, 316B, 178B, RG-122, 174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Coaxial
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp

FLA.1S Series

Part	Contact Finish - Mating	Current Rating (Amps)	Connector Type	Shell Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Positions	Contact Material	Shell Size - Insert	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Orientation	Backshell Material, Plating	Color	Shielding	Primary Material	Fastening Type	Ingress Protection	Insert Material	Shell Material	Connector Style	Shield Termination	Mating Cycles	Center Contact Material	Housing Color	Center Contact Plating	Body Material	Dielectric Material	Cable Group	Impedance	Body Finish	Contact Termination	Number of Ports	For Use With/Related Products	Accessory Type	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Material Flammability Rating	Cable Opening [custom]	Cable Opening [custom]
LEMO FLA.1S.120.CTAC52	Gold	18 A	Male Pins Plug	Chrome	Free Hanging (In-Line) Right Angle	-55 °C	250 °C	Backshell	1	Brass	120	0.165 in 0.205 in	4.2 mm	5.2 mm	Keyed	Brass Chrome	Silver	Shielded	Metal	Push-Pull	IP50	Polytetrafluoroethylene (PTFE)	Brass
LEMO FLA.1S.650.CTAC62			Male Pin Plug		Free Hanging (In-Line) Right Angle	-55 °C	250 °C													Push-Pull	IP50			Triaxial	Clamp	1000	Brass	Silver	Gold	Brass	Polytetrafluoroethylene (PTFE)	178 Belden 9222 RG-174	50 Ohms	Chrome	Solder
LEMO FLA.1S.275.CTAC62			Male Pin Plug		Free Hanging (In-Line) Right Angle	-55 °C	250 °C													Push-Pull	IP50			Coaxial	Clamp	1000	Brass	Silver	Gold	Brass	Polytetrafluoroethylene (PTFE)	179B 187A 223 302 400 59B RG-58C	75 Ohms	Chrome	Solder	1
LEMO FLA.1S.250.CTAC32Z			Male Pin Plug		Free Hanging (In-Line) Right Angle	-55 °C	250 °C													Push-Pull	IP50			Coaxial	Clamp	1000	Brass	Silver	Gold	Brass	Polytetrafluoroethylene (PTFE)	174 174A 178B 188A 196A 316B RG-122	50 Ohms	Chrome	Solder
LEMO FLA.1S.737.CN																																					1S Series Connector	Collet
LEMO FLA.1S.302.CLAC62	Gold	15 A	Female Sockets Male Pins Plug	Chrome	Free Hanging (In-Line) Right Angle	-55 °C	250 °C	Backshell	2	Brass Bronze	302				Keyed	Brass Chrome	Silver	Shielded	Metal	Push-Pull	IP50	Polyetheretherketone (PEEK)	Brass																0.244 in	0.224 in	6.2 mm	5.7 mm	UL94 V-0
LEMO FLA.1S.250.CTAC52			Male Pin Plug		Free Hanging (In-Line) Right Angle	-55 °C	250 °C													Push-Pull	IP50			Coaxial	Clamp	1000	Brass	Silver	Gold	Brass	Polytetrafluoroethylene (PTFE)	174 174A 178B 188A 196A 316B RG-122	50 Ohms	Chrome	Solder	1
LEMO FLA.1S.305.CLAC62	Gold	7 A 10 A	Female Sockets Male Pins Plug	Chrome	Free Hanging (In-Line) Right Angle	-55 °C	250 °C	Backshell		Brass Bronze	305				Keyed	Brass Chrome	Silver	Shielded	Metal	Push-Pull	IP50	Polyetheretherketone (PEEK)	Brass																0.244 in	0.224 in	6.2 mm	5.7 mm	UL94 V-0
LEMO FLA.1S.120.CTAC32	Gold	18 A	Male Pins Plug	Chrome	Free Hanging (In-Line) Right Angle	-55 °C	250 °C	Backshell	1	Brass	120				Keyed	Brass Chrome	Silver	Shielded	Metal	Push-Pull	IP50	Polytetrafluoroethylene (PTFE)	Brass																					2.2 mm 3.2 mm	0.087 in 0.126 in
LEMO FLA.1S.303.CLAC47Z	Gold	10 A	Female Sockets Male Pins Plug	Chrome	Free Hanging (In-Line) Right Angle	-55 °C	250 °C	Backshell		Brass Bronze	303	0.165 in 0.205 in	4.2 mm	5.2 mm	Keyed	Brass Chrome	Silver	Shielded	Metal	Push-Pull	IP50	Polyetheretherketone (PEEK)	Brass																				UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.15
		10	$ 38.66
		25	$ 36.99
		50	$ 35.80
		100	$ 34.61
		250	$ 32.70

Description

General part information

FLA.1S Series

Coaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
