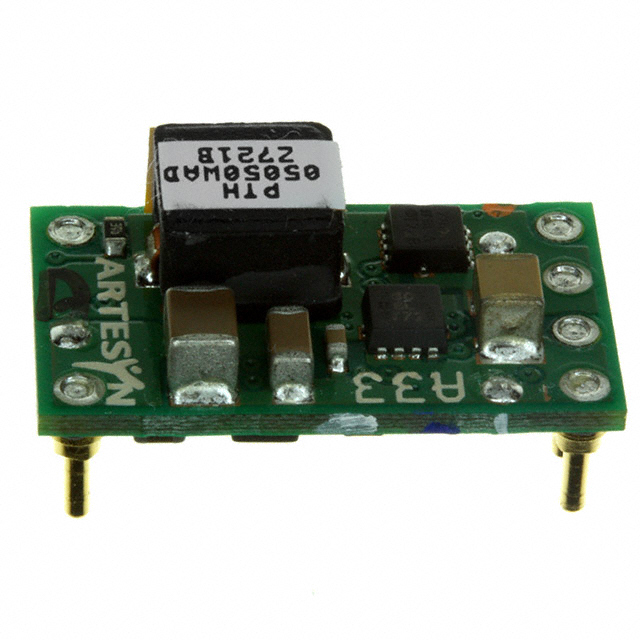

PTH05050WAD
ObsoleteARTESYN / Advanced Energy
DC DC CONVERTER 0.8-3.6V 21W
Deep-Dive with AI
Search across all available documentation for this part.
PTH05050WAD
ObsoleteARTESYN / Advanced Energy
DC DC CONVERTER 0.8-3.6V 21W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTH05050WAD |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 95 % |
| Features | UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 21 W |
| Size / Dimension [x] | 0.87 in |
| Size / Dimension [x] | 22.1 mm |
| Size / Dimension [y] | 0.5 in |
| Size / Dimension [y] | 12.7 mm |
| Size / Dimension [z] | 8.6 mm |
| Size / Dimension [z] | 0.34 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 3.6 V |
| Voltage - Output 1 [Min] | 0.8 V |
